EFI00218	3.248025
EFI07337	0\|0.1085
EFI07343	0\|0.0775
EFI07515	-13\|140
Frequency
Voltage type	Other
Rated current	80 A
Rated voltage	-
Built-in depth	82.5 mm
Explosion-proof	hayır
Pollution degree	2
Over voltage category	3
Current limiting class	3
Release characteristic	Other
Number of poles (total)	3
Degree of protection (IP)	IP20
Number of protected poles	3
Flush-mounted installation	hayır
Rated insulation voltage Ui	1500 V
Additional equipment possible	evet
Width in number of modular spacings	4.5
Ambient temperature during operating	-25 - 60 °C
Rated impulse withstand voltage Uimp	8 kV
Concurrently switching neutral conductor	hayır
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-

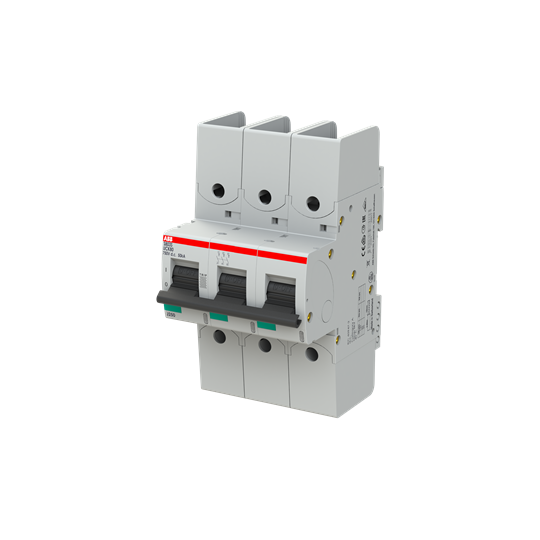

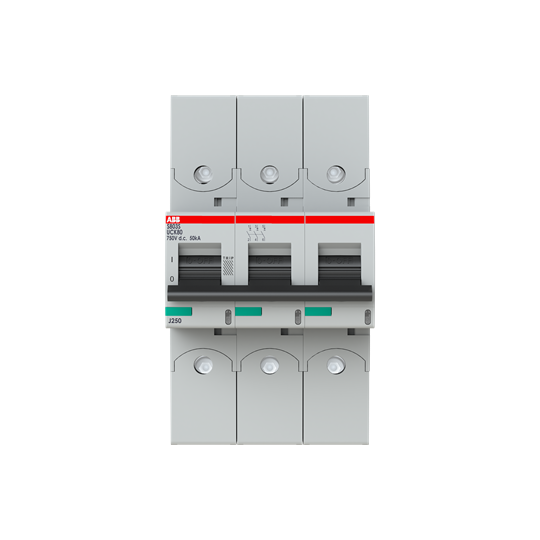

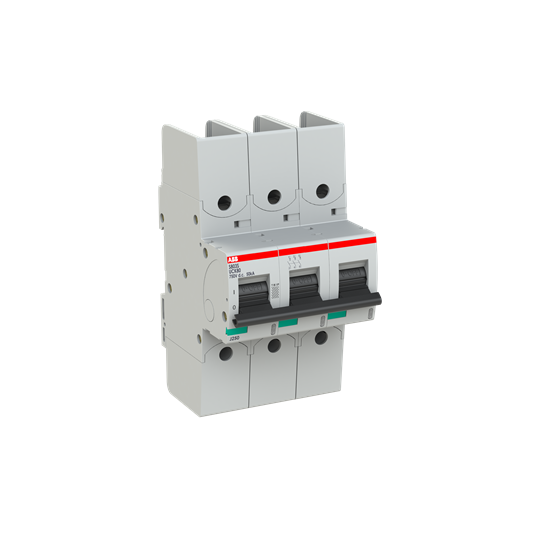

High Performance MCB
