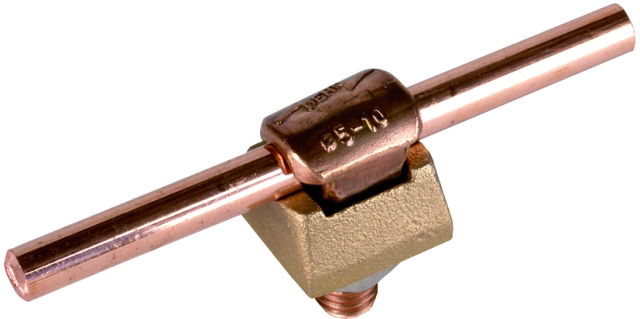

KS connector Cu-RCB f. Rd 6-10mm one-piece
Clamping screw connector according to DIN EN 62561-1, for lightning current carrying connection of round conductors, e.g. to flat profiles, downpipe clamps or other parts of the lightning protection system, one-piece, Cu, with screw and nut M10.
Ürün kimlikleri
SKU: 301007
EAN: 4013364021358
GTIN: 4013364021358
MPN: KSV 6.10 CU
Teknik özellikler
| Material | Gunmetal (bronze) |
| Type of connector | Connector |
| Surface protection | Untreated |
| Width flat conductor 1 | |
| Width flat conductor 2 | |
| Type of fastening screws | Clamp screw |
| Diameter round conductor 1 | 6.0 - 10.0 mm |
| Diameter round conductor 2 |
