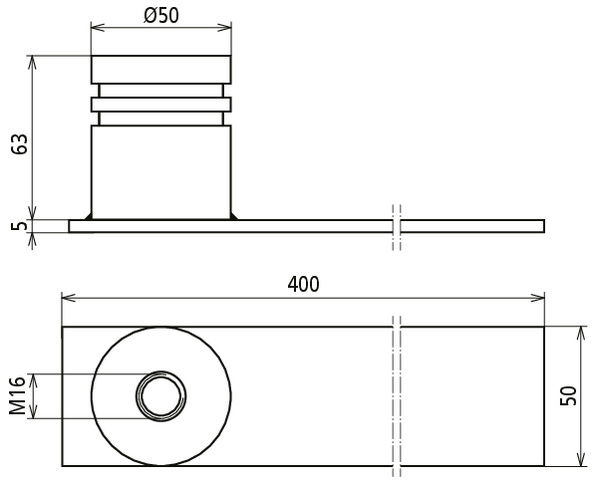

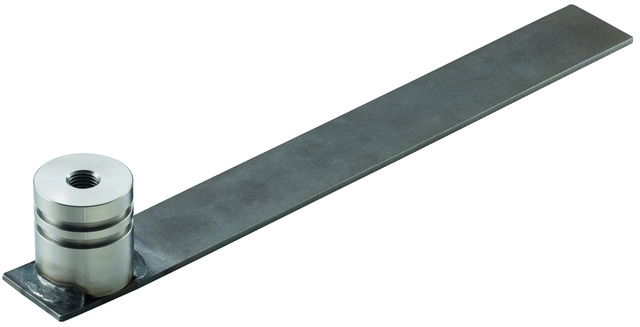

Flat steel earthing bridge, with conn. el. + M16 thread D 50mm H 63mm L 400mm
Flat steel earthing bridge according to the guideline of DB Netz AG Ril 997.0205A01, for earthing, current return circuits and equipotential bonding in railway line applications. Consisting of a connection element made of stainless steel with M16 thread and flat steel. Designed for short-circuit currents > 25 kA.
Ürün kimlikleri
SKU: 419012
EAN: 4013364439467
GTIN: 4013364439467
MPN: D BEB 1-NR / EBS 15-03-19
Kategoriler
Teknik özellikler
| Length | 63 mm |
| Material | Stainless steel 304 (V2A) |
| Connecting shaft | 400 mm |
| Bolt dimension (metric) | 16 |
| Material connection lug | Other |
| Diameter connection plate | 50 mm |
