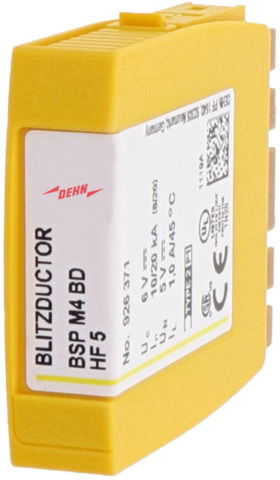

Surge arrester module for 2 pairs BLITZDUCTOR SP

Name: Surge arrester module for 2 pairs BLITZDUCTOR SP
Brand: DEHN
SKU: 926371

Space-saving surge arrester module for protecting two pairs of high-frequency bus systems or video transmission systems with galvanic isolation.

Ürün kimlikleri

SKU: 926371

EAN: 4013364127289

GTIN: 4013364127289

MPN: BSP M4 BD HF 5

Kategoriler

Switchgear & Circuit Protection Distribution Boards 3-Phase Distribution Boards

Frequency
Connection 1	-
Earthing via	Other
Assembly width	12 mm
Mounting method	On basic element
Limiting frequency	100.0 MHz
Nominal voltage AC
Nominal voltage DC	5.0 - 5.0 V
Nominal load current	1 A
Signal disconnection	-
Explosion-tested version	-
Signalling at the device	-
Degree of protection (IP)	IP20
Pro-active thermo-control	-
Max. continuous voltage AC	4.2 V
Max. continuous voltage DC	6.0 V
With remote signalling contact	-
Voltage protection level core/core	11 V
Voltage protection level core/earth	550 V
Lightning impulse current (10/350 µs)	1 kA
Nominal discharge surge current (8/20)	20 kA
Number of conductors (without earthing)	4
Voltage protection level core/signal ground	-
Voltage protection level signal ground/protective ground	-
