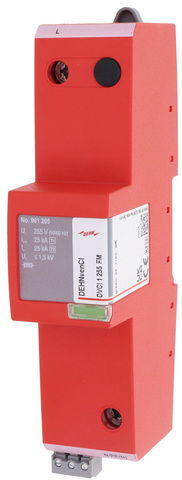

Combined arrester Type 1 + Type 2 DEHNvenCI 1-pole 255V a.c. with backup fuse
Single-pole DEHNvenCI combined lightning current and surge arrester (type 1 + type 2 according to EN 61643-11) with integrated backup fuse. Maximum availability due to RADAX FLOW follow current limitation. Capable of protecting terminal equipment. For protecting low-voltage consumer's installations against surges and even direct lightning strikes. For installation in conformity with the lightning protection zone concept at the boundaries from 0A - 2.
Ürün kimlikleri
SKU: 961205
EAN: 4013364145115
GTIN: 4013364145115
MPN: DVCI 1 255 FM
Teknik özellikler
| Test class | Type 1 + 2 |
| Max. PV-voltage | - |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Number of poles | 1 |

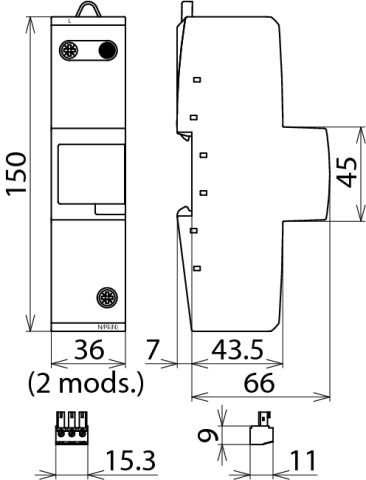

| Construction size | 2 modular spacing |
| Remote signalling | evet |
| Nominal voltage AC | 230 V |
| Nominal voltage DC | - |
