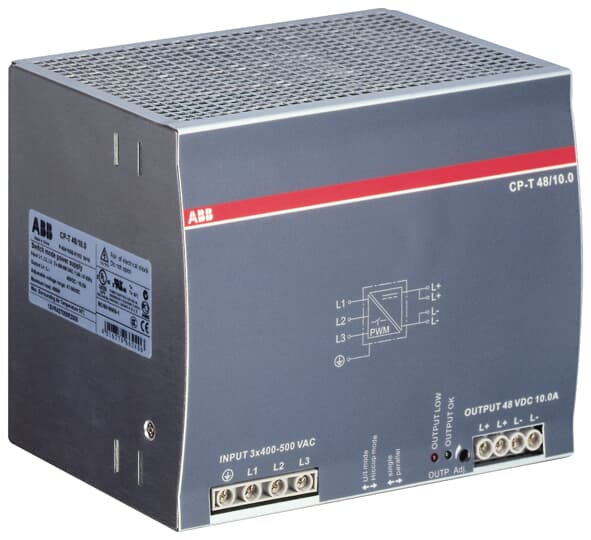

CP-T 48/10.0 Power supply In: 3x400-500VAC Out: 48VDC/10.0A

Name: CP-T 48/10.0 Power supply In: 3x400-500VAC Out: 48VDC/10.0A
Brand: ABB
SKU: 1SVR427055R2000

Ürün kimlikleri

SKU: 1SVR427055R2000

EAN: 4016779662406

GTIN: 4016779662406

MPN: CP-T 48/10.0

Kategoriler

Transformers & Power Supplies Power Supplies

Low-voltage industrial components

Depth	119 mm
Width	150 mm
Height	131 mm
EFI00008	-
EFI00040	-
EFI00049	-
EFI00332	-
EFI00846	-
Stabilized	evet
Power output	480 W
Built-in width	150 mm
Built-in height	131 mm
Modular version	hayır
Power consumption	535 VA
Short-circuit-proof	evet
Max. output current 1	-
Max. output current 2
Max. output current 3
Wall mounting possible	hayır
Rated supply voltage DC	480 - 820 V
Direct mounting possible	hayır
Degree of protection (IP)	IP20
Output voltage stabilized	evet
SIL according to IEC 61508	None
Suitable for rail mounting	evet
Degree of protection (NEMA)	1
Type of electric connection	Screw connection
1st secondary output voltage	48 - 48 V
2nd secondary output voltage
3rd secondary output voltage
Secondary voltage adjustable	hayır
Rated supply voltage AC 50 Hz	340 - 575 V
Rated supply voltage AC 60 Hz	340 - 575 V
Suitable for safety functions	hayır
Voltage type (supply voltage)	AC/DC
Nominal value output current 1	10 A
Nominal value output current 2
Nominal value output current 3
Nominal value output voltage 1	48 V
Nominal value output voltage 2
Nominal value output voltage 3
Width in number of modular spacings	-
Performance level according to EN ISO 13849-1	None

Deeplink product page
Deeplink REACH
Dimensioned drawing
Instructions for use
Product data sheet
Declaration RoHS
Declaration DOC CE (Declaration of conformity CE)
