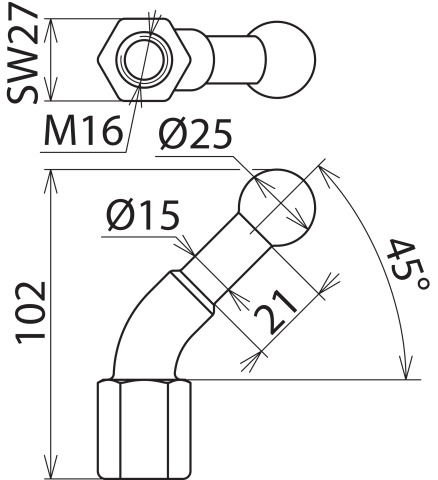

Fixed ball point D=25mm, angled (45°) with M16 female thread
Fixed ball point 45° angled with female thread as line and earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system. High mechanical strength due to female thread (not cut). Suitable for fixing cable lugs or connecting busbars in accordance with DIN 43673-1.
Ürün kimlikleri
SKU: 756600
EAN: 4013364004320
GTIN: 4013364004320
MPN: KFP 25 W45 M16
Kategoriler
Teknik özellikler
| Mounting method | With internal thread |
| Construction type | Angled |
| Diameter fixed point | 25 mm |
| Max. short circuit current | 26.5 kA |
| Suitable for round conductors | - |
| Max. wire cross section copper | 95 mm² |
| Connection of the earthing and short circuit device | Fixed ball point 25 mm |
