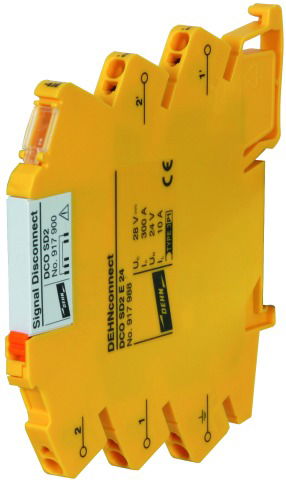

Surge arrester terminal block 2-pole DEHNconnect SD2
DEHNconnet SD2 terminal block with integrated surge protection. Finely limiting surge protective device with powerful diodes to earth for protecting two single lines sharing a common reference potential as well as unbalanced interfaces. Signal circuits can be disconnected by removing the plug-in part.
Ürün kimlikleri
SKU: 917988
EAN: 4013364150652
GTIN: 4013364150652
MPN: DCO SD2 E 24
Kategoriler
Özellikler
|
Frequency
|
|
|
Connection 1
|
Push-in terminal
|
|
Earthing via
|
DIN rail (top hat rail)
|
|

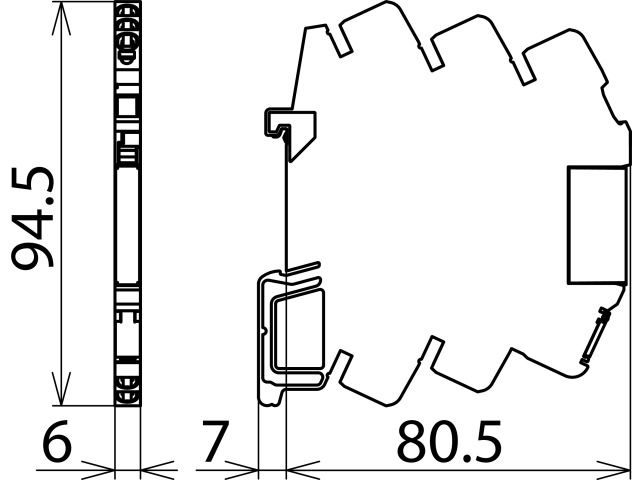

Assembly width
|
6 mm
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Limiting frequency
|
5.5 MHz
|
|
Nominal voltage AC
|
|
|
Nominal voltage DC
|
24.0 - 24.0 V
|
|
Nominal load current
|
10 A
|
|
Signal disconnection
|
evet
|
|
Explosion-tested version
|
-
|
|
Signalling at the device
|
-
|
|
Degree of protection (IP)
|
Other
|
|
Pro-active thermo-control
|
-
|
|
Max. continuous voltage AC
|
19.5 V
|
|
Max. continuous voltage DC
|
28 V
|
|
With remote signalling contact
|
-
|
|
Voltage protection level core/core
|
76 V
|
|
Voltage protection level core/earth
|
38 V
|
|
Lightning impulse current (10/350 µs)
|
-
|
|
Nominal discharge surge current (8/20)
|
0.6 kA
|
|
Number of conductors (without earthing)
|
2
|
|
Voltage protection level core/signal ground
|
-
|
|
Voltage protection level signal ground/protective ground
|
-
|
