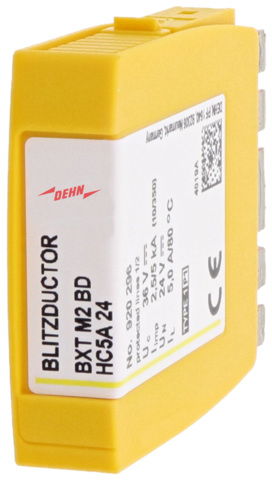

Combined arrester module for 1 pair BLITZDUCTOR XT
Space-saving combined arrester module for protecting one pair of unearthed balanced interfaces. Module is adapted to the controller of motor-driven actuators with starting and operating currents up to 5 A.
Ürün kimlikleri
SKU: 920296
EAN: 4013364340015
GTIN: 4013364340015
MPN: BXT M2 BD HC5A 24
Kategoriler
Özellikler
|
Frequency
|
|
|
Connection 1
|
Screw terminal
|
|
Earthing via
|
DIN rail (top hat rail)
|
|

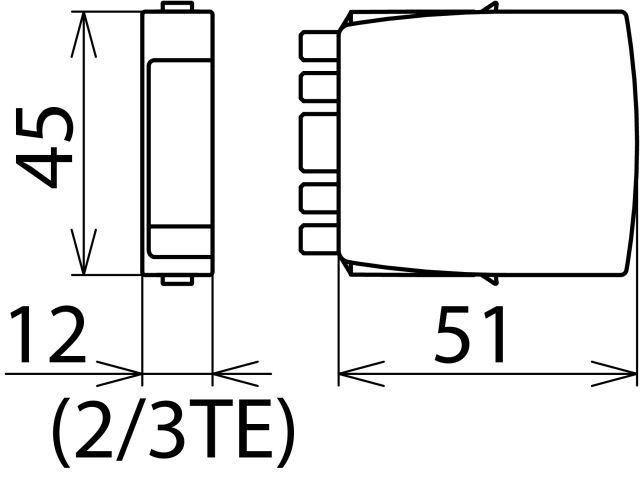

Assembly width
|
12 mm
|
|
Mounting method
|
On basic element
|
|
Limiting frequency
|
-
|
|
Nominal voltage AC
|
|
|
Nominal voltage DC
|
24.0 - 24.0 V
|
|
Nominal load current
|
5 A
|
|
Signal disconnection
|
-
|
|
Explosion-tested version
|
-
|
|
Voltage protection level
|
-
|
|
Degree of protection (IP)
|
IP20
|
|
Pro-active thermo-control
|
hayır
|
|
Max. continuous voltage AC
|
25.5 V
|
|
Max. continuous voltage DC
|
36 V
|
|
With remote signalling contact
|
-
|
|
Voltage protection level core/core
|
150 V
|
|
Voltage protection level core/earth
|
600 V
|
|
Lightning impulse current (10/350 µs)
|
5 kA
|
|
Nominal discharge surge current (8/20)
|
20 kA
|
|
Number of conductors (without earthing)
|
2
|
|
Voltage protection level core/signal ground
|
-
|
|
Voltage protection level signal ground/protective ground
|
-
|
