High Performance MCB
1 / 3
High Performance MCB

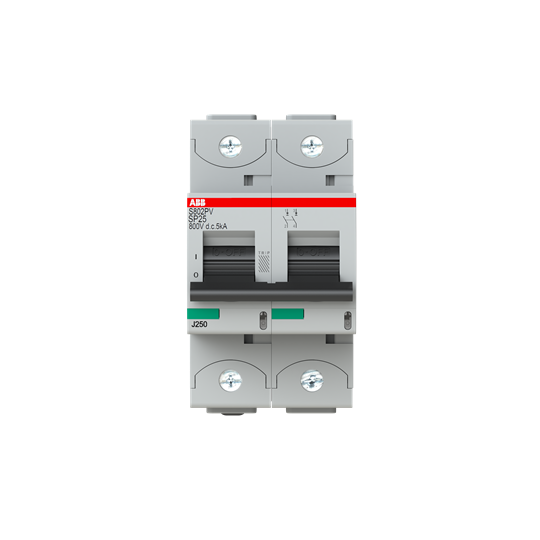

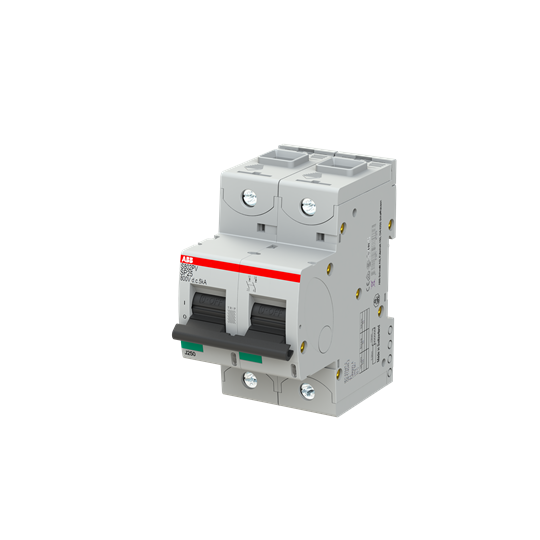

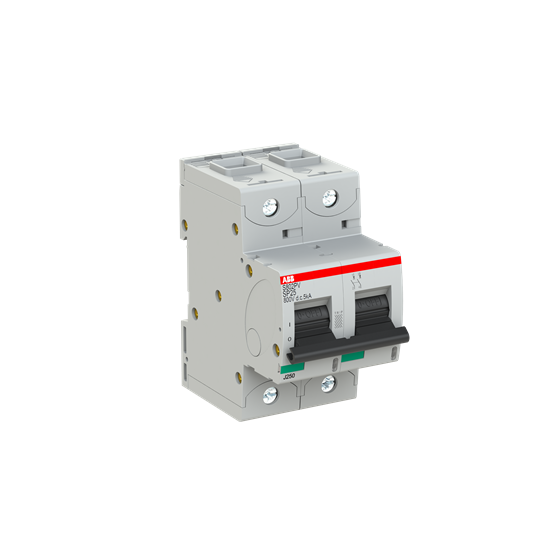

The S802PV-SP25 is a 2-pole High Performance Circuit breaker for photovoltaics (DC) with B-characteristic, with cage terminal and a rated current of 25 A. It is a current limiting device with a maximum breaking capacity of 5kA at 800V. It can be used for voltages up to 800V DC. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802PV-SP25 complies with IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802PV-SP25 more comfortable. Due to the fast arc extinction of S802PV-SP25 your application will be secured.
Ürün kimlikleri
SKU: 2CCF019601R0001
EAN: 7612271471279
GTIN: 7612271471279
MPN: S802PV-SP25
Kategoriler
ETIM grubu
Teknik özellikler
| EFI00218 | 3.248025 |
| EFI07337 | 0|0.1085 |
| EFI07343 | 0|0.0775 |
| EFI07515 | -13|140 |
| Frequency | |
| Voltage type | Other |
| Rated current | 25 A |
| Rated voltage | - |
Belgeler
Deeplink product page
Deeplink REACH
9AKK108468A3036 EU REACH Declaration S800 range.pdf
Instructions for use
Instruction Manual S800 - Rev. N.pdf
Product data sheet
Declaration DOC CE (Declaration of conformity CE)
2CCC005084D0202 EU Declaration S800S-UC,HV,PV-SP.pdf
Declaration EPD (Environmental Product Declaration)
