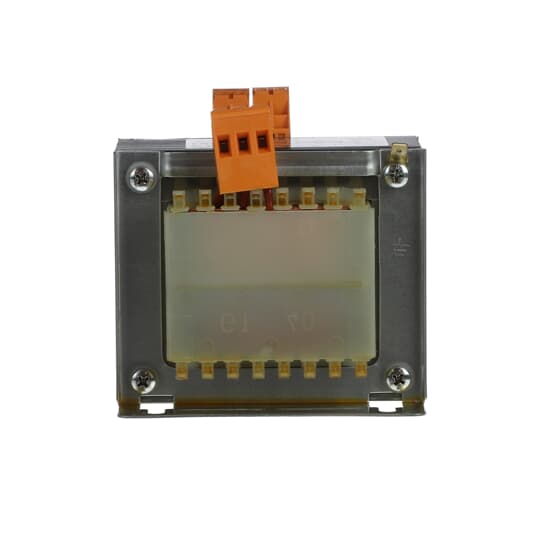

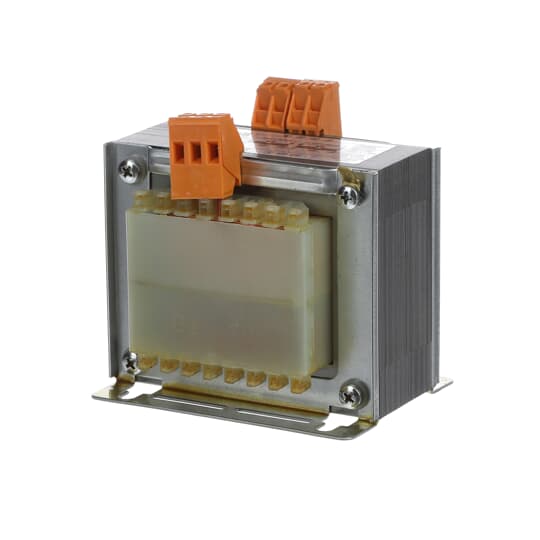

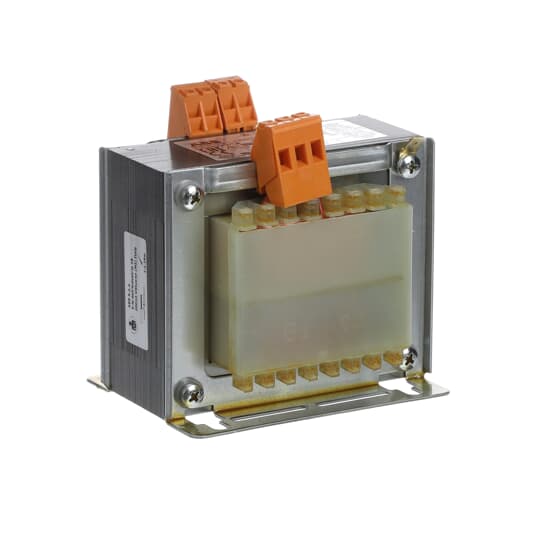

Single phase control transformer

Name: Single phase control transformer
Brand: ABB
SKU: 2CSM236923R0801

Transformer for supplying control circuits, for example commands, signalling, interlocks, etc.

Ürün kimlikleri

SKU: 2CSM236923R0801

EAN: 8012542369233

GTIN: 8012542369233

MPN: TM-C 320/115-230

Low-voltage industrial components

Teknik özellikler

Depth	102 mm
Width	123 mm
Height	91 mm
EFI00008	4.84251
EFI00040	3.58267
EFI00049	4.01574
Ring core	-
Modular version	-
Primary voltage 1
Primary voltage 2
Primary voltage 3
Primary voltage 4
Primary voltage 5
Primary voltage 6
Primary voltage 7
Primary voltage 8
Primary voltage 9
Conductor material	Copper
Primary voltage 10
Secondary voltage 1
Secondary voltage 2
Secondary voltage 3
Secondary voltage 4
Secondary voltage 5
Secondary voltage 6
Secondary voltage 7
Secondary voltage 8
Secondary voltage 9
Short-circuit-proof	-
Rated apparent power	-
Secondary voltage 10
Degree of protection (IP)	-
Built as safety transformer	-
Suitable for mounting on PCB	-
Built as isolating transformer	-
Relative short circuit voltage	-
Built as energy saving transformer	-
Type of insulation material according to IEC 85	-
