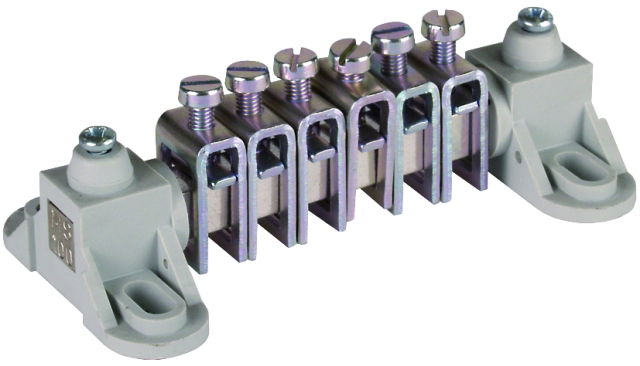

Equipotential bonding bar w/o cover 6x2.5-25mm² (mini type)

Name: Equipotential bonding bar w/o cover 6x2.5-25mm² (mini type)
Brand: DEHN
SKU: 563105

Equipotential bonding busbar MINI according to EN 62561-1, for protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54. Tested according to DIN EN 60999-2, terminal block St/gal Zn, grey plastic bar frames (halogen-free).

Ürün kimlikleri

SKU: 563105

EAN: 4013364027831

GTIN: 4013364027831

MPN: PAS 6RK OH

Kategoriler

Switchgear & Circuit Protection Busbars

Teknik özellikler

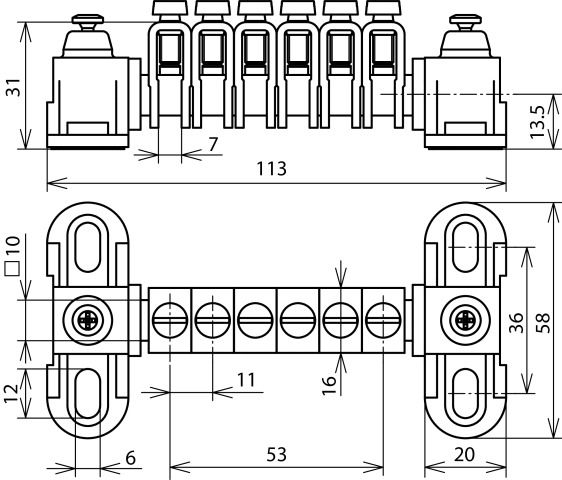

Model	Only clamp
Width	58 mm
Height	35 mm
Length	113 mm
Insulator	-
Construction type	Surface mounting modular
Material of clamp	Steel
Surface of the clamp	Galvanic/electrolytic zinc plated
Explosion-tested version	-
Material of contact rail	Brass
Surface of the contact rail	Galvanic tinned
Number of connections flat conductor 30 mm	-
Number of connections flat conductor 40 mm	-
Number of connections round conductor 8 mm	-
Number of connections round conductor 10 mm	-
Number of connections round conductor total	-
Number of connections round conductor 8-10 mm	-
Number of connections conductor to 6 mm² fixed	-
Number of connections conductor to 16 mm² fixed	-
Number of connections conductor to 25 mm² fixed	6
Number of connections conductor to 95 mm² fixed	-
