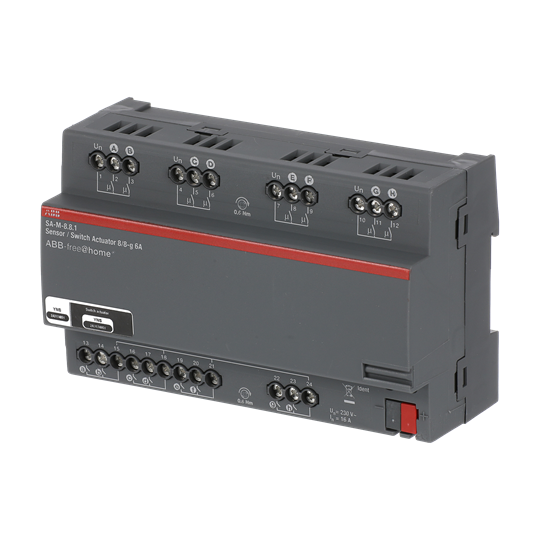

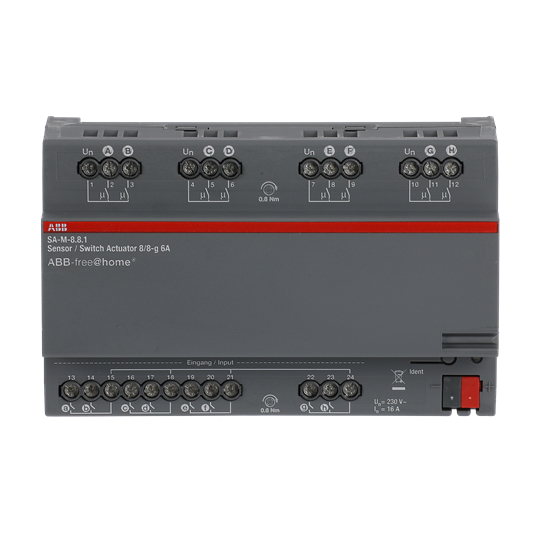

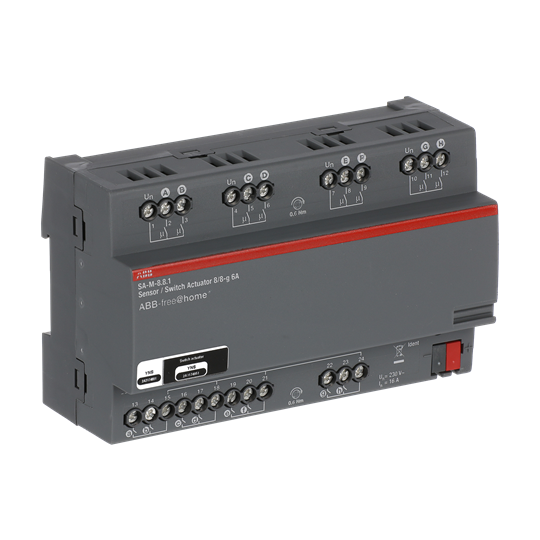

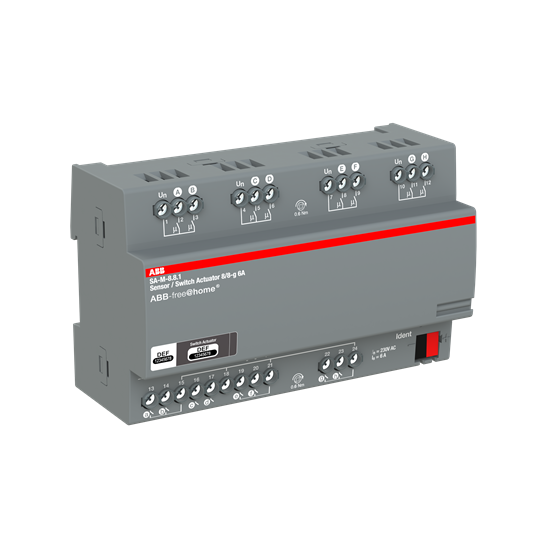

SA-M-8.8.1 Switch Actuator I/O, 8-fold, 6 A, MDRC

Name: SA-M-8.8.1 Switch Actuator I/O, 8-fold, 6 A, MDRC
Brand: ABB
SKU: 2CDG510007R0011

Combination device with 8 binary inputs and 8 switch actuators. Conventional push-buttons or auxiliary contacts can be connected to 8 channels.The information of the contact enquiry can be used for activating ABB-free@home® actuators or for recording status information. The contact polling voltage is made available by the device itself.

Ürün kimlikleri

SKU: 2CDG510007R0011

EAN: 4016779945561

GTIN: 4016779945561

MPN: SA-M-8.8.1

Kategoriler

Switchgear & Circuit Protection Switchgear Low Voltage Switchgear

ETIM Group

Installation bus systems

Teknik özellikler

EFI12278	2.539365
Output power	1380 W
Rated current	6 A
Bus system KNX	hayır
Bus system LON	hayır
Mounting method	DRA (DIN-rail adapter)
Other bus systems	Other
Bus system Powernet	hayır
Suitable for C-load	hayır
With LED indication	hayır
With bus connection	hayır
Max. switching power	1200 W
Bus module detachable	hayır
Modular expandability	hayır
Max. switching current	6 A
Rated operating voltage	230 - 230 V
Max. switching power LED	-
Number of digital inputs	8
Degree of protection (IP)	IP20
Bus system radio frequency	hayır
Different phases connectable	evet
Radio frequency bidirectional	evet
Local operation/hand operation	hayır
Max. number of switching contacts	8
Bus system KNX-RF (Radio Frequency)	hayır
Width in number of modular spacings	8.0
Min. depth of built-in installation box	64.5 mm
