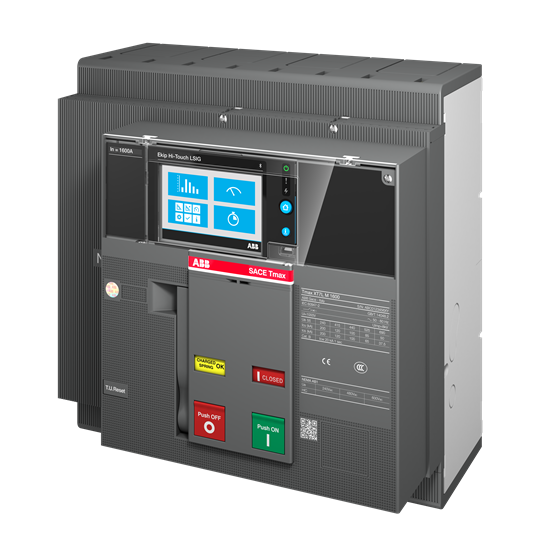

XT7H M 1000 EkipTouchMeas.LSIG 1000 4pFF

Name: XT7H M 1000 EkipTouchMeas.LSIG 1000 4pFF
Brand: ABB
SKU: 1SDA101735R1

C.BREAKER TMAX XT7H 1000 FIXED FOUR-POLE WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC EKIP TOUCH MEASURING LSIG R 1000

Ürün kimlikleri

SKU: 1SDA101735R1

EAN: 8056221017794

GTIN: 8056221017794

MPN: XT7H M 1000 EkipTouchMeas.LSIG 1000 4pFF

Kategoriler

Switchgear & Circuit Protection Circuit Breakers MCBs RCBOs RCDs

ETIM Group

Low-voltage industrial components

Teknik özellikler

Rated voltage	690 - 690 V
Number of poles	4
Device construction	Built-in device fixed built-in technique
Motor drive optional	evet
Motor drive integrated	hayır
Type of control element	Toggle
Degree of protection (IP)	IP20
Rated permanent current Iu	1000 A
With switched-off indicator	hayır
Overload release current setting	400.0 - 1000 A
Integrated earth fault protection	hayır
Complete device with protection unit	evet
With integrated under voltage release	hayır
DIN rail (top hat rail) mounting optional	hayır
Suitable for DIN rail (top hat rail) mounting	hayır
Type of electrical connection of main circuit	Bolt connection
Position of connection for main current circuit	Front side
Adjustment range undelayed short-circuit release	1500.0 - 15000 A
Number of auxiliary contacts as change-over contact
Number of auxiliary contacts as normally open contact
Number of auxiliary contacts as normally closed contact
Adjustment range short-term delayed short-circuit release	600.0 - 10000 A
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz	-
