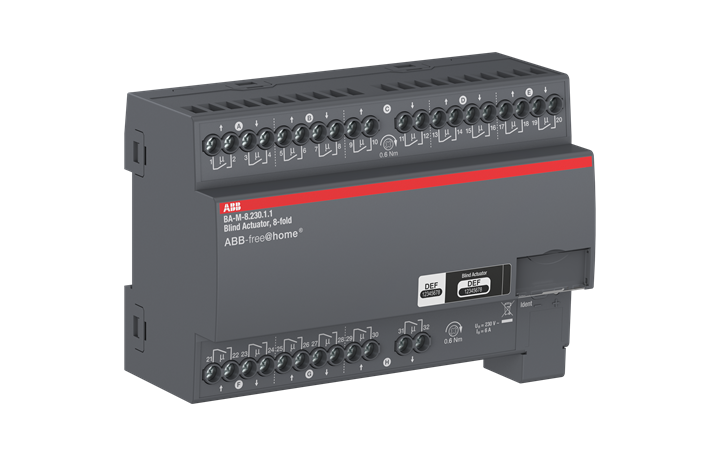

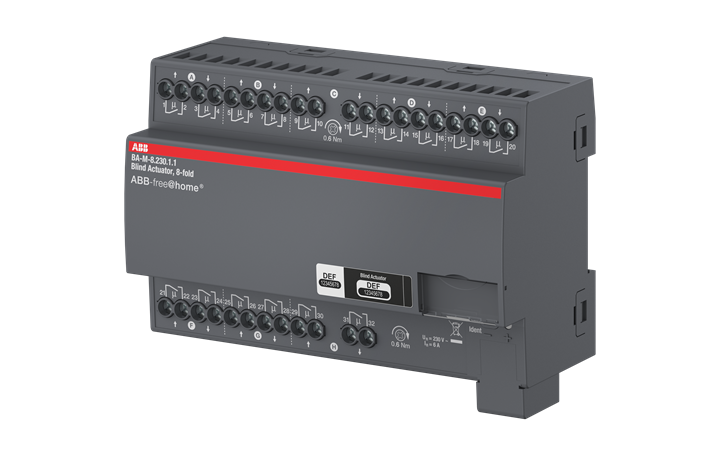

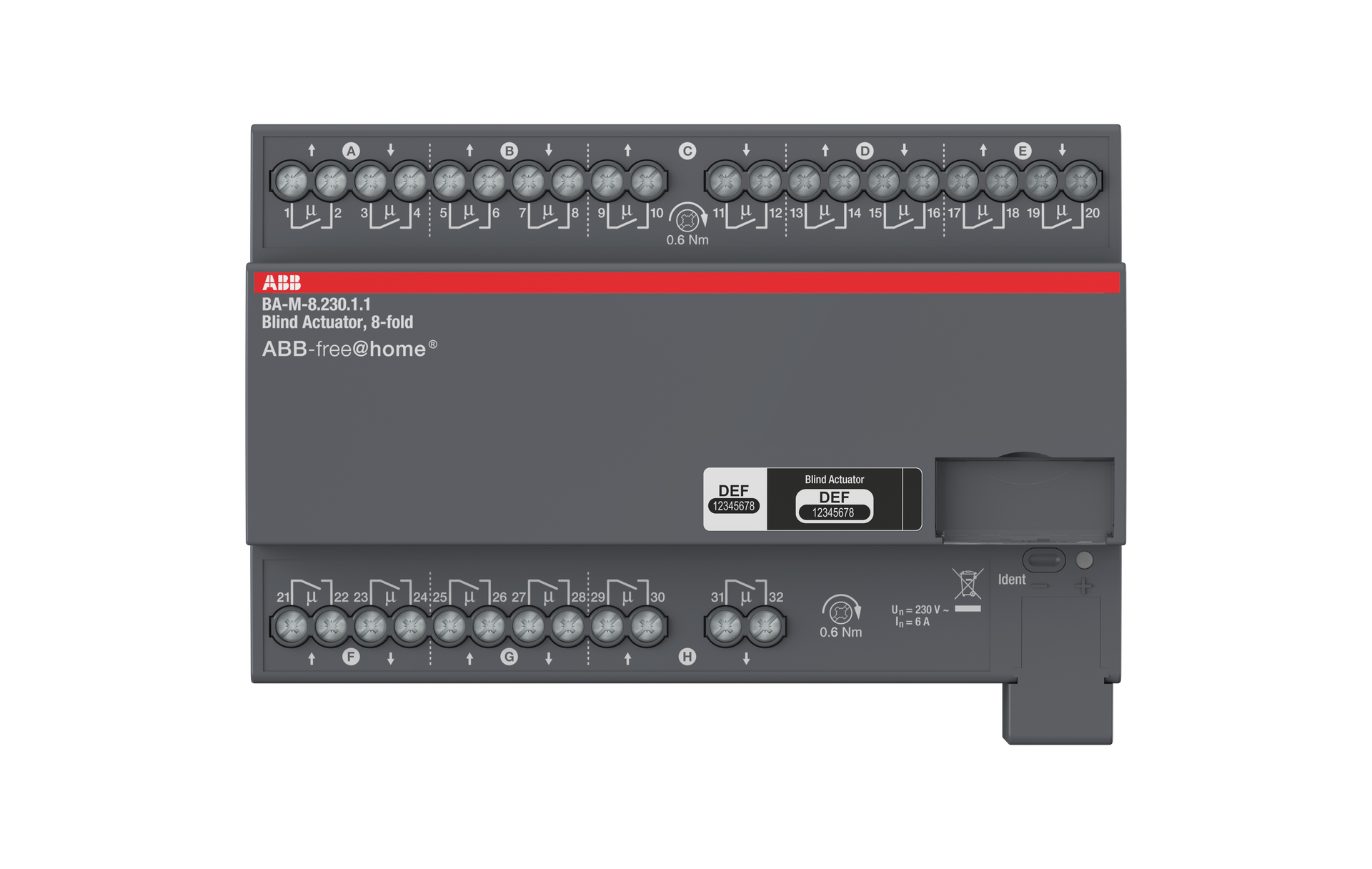

BA-M-8.230.1.1 Blind Actuator, 8-fold 230 V, MDRC

Name: BA-M-8.230.1.1 Blind Actuator, 8-fold 230 V, MDRC
Brand: ABB
SKU: 2CDG510029R0011

For controlling 8 independent blind or roller shutter drives. The bus can be connected via enclosed terminal block.

Ürün kimlikleri

SKU: 2CDG510029R0011

EAN: 4053546111354

GTIN: 4053546111354

MPN: BA-M-8.230.1.1

Installation bus systems

Teknik özellikler

EFI12278	2.499995
Bus system KNX	hayır
Bus system LON	hayır
Mounting method	DRA (DIN-rail adapter)
Type of current	AC/DC
Number of inputs	-
Other bus systems	Other
Bus system Powernet	hayır
With LED indication	evet
With bus connection	evet
Max. switching power	1200 W
With switch function	-
Bus module detachable	hayır
Degree of protection (IP)	IP20
Bus system radio frequency	hayır
Radio frequency bidirectional	-
Switching current (resistive)	-
Local operation/hand operation	-
Bus system KNX-RF (Radio Frequency)	hayır
Width in number of modular spacings	8.0
Max. number of venetian-blind outputs	-
Min. depth of built-in installation box	63.5 mm
