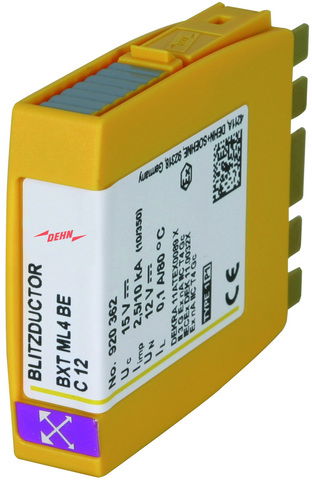

BXT combined lightning current and surge arrester module

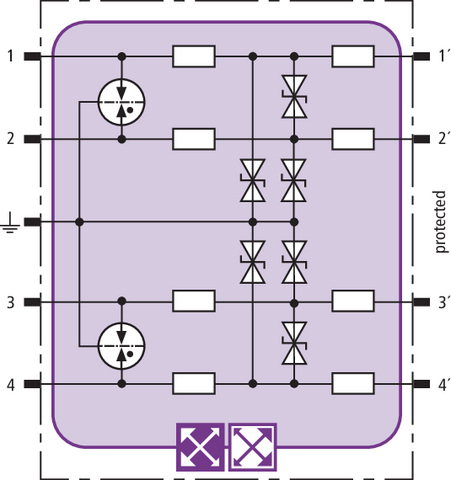

Space-saving combined lightning current and surge arrester module with LifeCheck feature for protecting two pairs of balanced interfaces with diode protective circuit at the input, current loops (TTY) and optocoupler inputs. If LifeCheck detects thermal or electrical overload, the arrester has to be replaced. This status is indicated contactlessly by the DEHNrecord LC / SCM / MCM reader.
Ürün kimlikleri
SKU: 920362
EAN: 4013364120587
GTIN: 4013364120587
MPN: BXT ML4 BE C 12
Teknik özellikler
| Frequency | |
| Connection 1 | Screw terminal |
| Earthing via | DIN rail (top hat rail) |
| Assembly width | 12 mm |
| Mounting method | On basic element |
| Limiting frequency | 0.85 MHz |
| Nominal voltage AC | |
| Nominal voltage DC | 12.0 - 12.0 V |
