| Frequency |
|
| Connection 1 |
Connection cable |
| Earthing via |
Separate conductor |

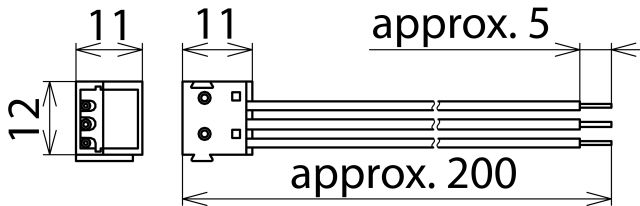

| Assembly width |
12 mm |
| Mounting method |
Duct installation |
| Limiting frequency |
70 MHz |
| Nominal voltage AC |
|
| Nominal voltage DC |
24.0 - 24.0 V |
| Nominal load current |
6 A |
| Signal disconnection |
- |
| Explosion-tested version |
- |
| Signalling at the device |
- |
| Degree of protection (IP) |
IP20 |
| Pro-active thermo-control |
- |
| Max. continuous voltage AC |
- |
| Max. continuous voltage DC |
45 V |
| With remote signalling contact |
- |
| Voltage protection level core/core |
750 V |
| Voltage protection level core/earth |
500 V |
| Lightning impulse current (10/350 µs) |
- |
| Nominal discharge surge current (8/20) |
5 kA |
| Number of conductors (without earthing) |
2 |
| Voltage protection level core/signal ground |
- |
| Voltage protection level signal ground/protective ground |
- |
