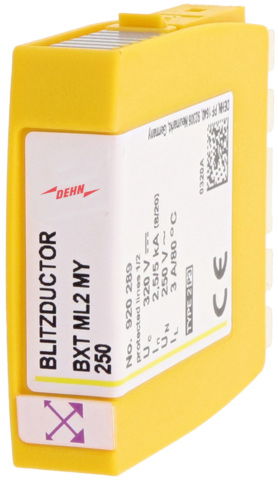

BLITZDUCTOR XT surge protection module
Space-saving surge arrester module with LifeCheck feature for protecting two lines of stranded signal interfaces up to 250 V a.c. If LifeCheck detects thermal or electrical overload, the arrester has to be replaced. This status is indicated contactlessly by the DEHNrecord LC / SCM / MCM reader.
Ürün kimlikleri
SKU: 920289
EAN: 4013364135840
GTIN: 4013364135840
MPN: BXT ML2 MY 250
Kategoriler
Teknik özellikler
| Frequency | |
| Connection 1 | Screw terminal |
| Earthing via | Other |
| Assembly width | 12 mm |
| Mounting method | On basic element |
| Limiting frequency | 20.0 MHz |
| Nominal voltage AC | |
| Nominal voltage DC | 250.0 - 250.0 V |
