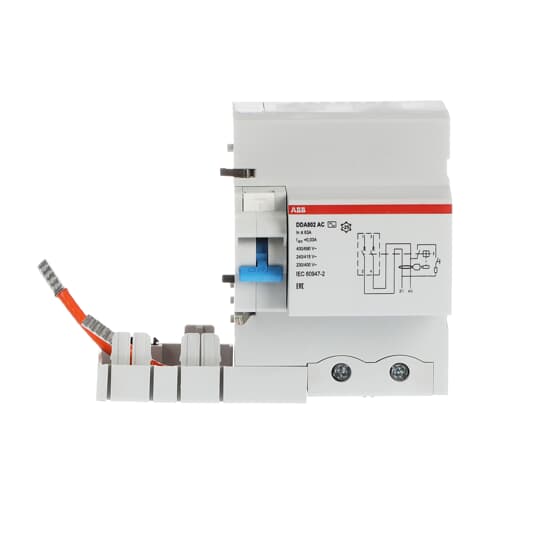

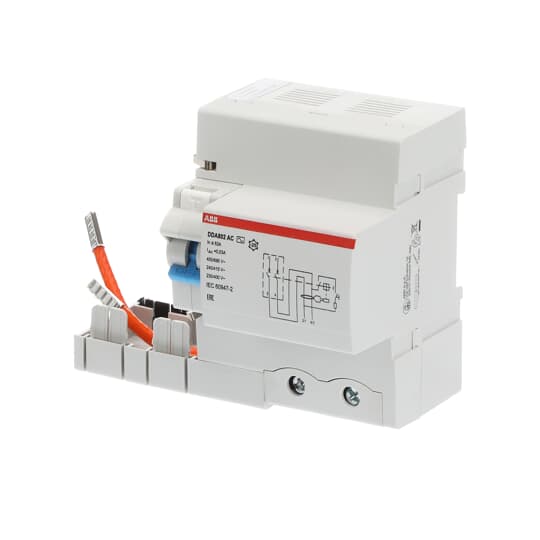

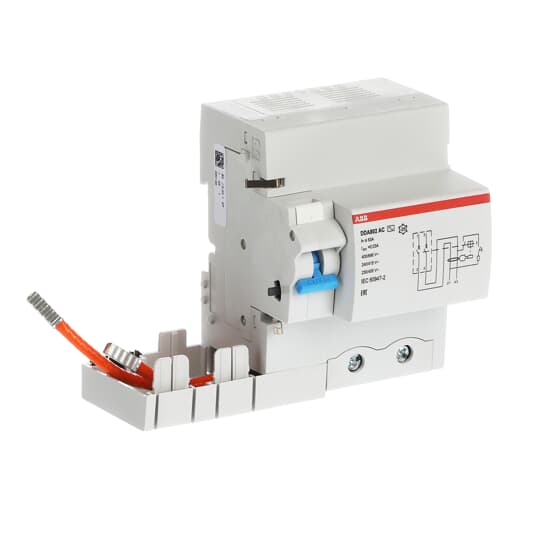

Residual Current Device Block

Name: Residual Current Device Block
Brand: ABB
SKU: 2CSB802001R1630

The RCD Block DDA800 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is suitable for assembly with MCBs S800 series up to 63A.

Ürün kimlikleri

SKU: 2CSB802001R1630

EAN: 8012542919704

GTIN: 8012542919704

MPN: DDA802AC-63/0.03

Kategoriler

Switchgear & Circuit Protection Circuit Breakers RCDs

ETIM Group

Circuit breakers and fuses

Teknik özellikler

EFI07337	0.0093\|0.0775
EFI07343	0.0093\|0.1085
EFI07515	-13\|140
Frequency	50/60 Hz
Max. delay time	-
Nominal current	63 A
Nominal voltage	230 - 400 V
Number of poles	2
Delay adjustable	hayır
Pollution degree	-
Rated fault current	0.03 - 0.03 A
Leakage current type	AC
Surge current capacity	0.25 kA
With interlocking device	hayır
Degree of protection (IP)	IP2X
Rated insulation voltage Ui	690 V
Anti-nuisance tripping version	hayır
Rated fault current adjustable	hayır
Ambient temperature during operating	-25 - 60 °C
Rated impulse withstand voltage Uimp	6 kV
Connectable conductor cross section solid-core	6 - 50 mm²
Connectable conductor cross section multi-wired	6 - 70 mm²
