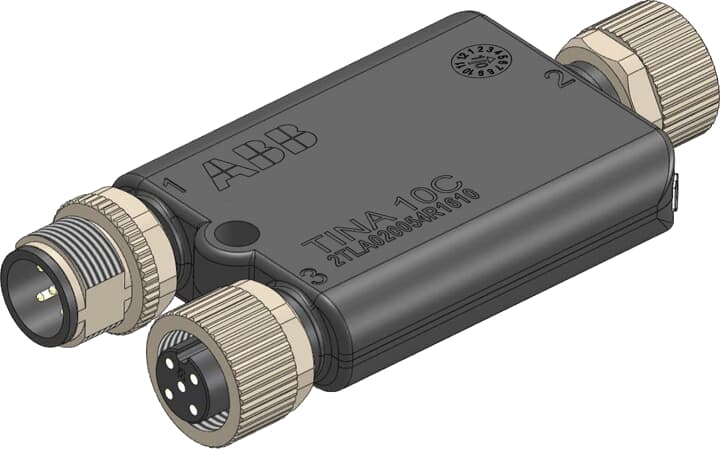

Tina 10C v2 DYNlink adapter
TIna 10C v2 adapts the OSSD outputs of ABB optical safety devices to the DYNlink solution with possibility to power the transmitter. Tina 10C has one M12-5 male connector towards the DYNlink loop, one M12-8 female connector towards the OSSD device and one M12-5 female connector for the supply of the transmitter (0V and +24VDC). The Tina devices adapt the DYNlink safety circuit in Vital, Pluto and B&R X20 to safety components with mechanical contacts, such as E-stops, switches and light beams/curtains with dual outputs. Tina is available in several versions depending on the type of safety component that is connected to the Vital, Pluto or B&R X20 circuit.
Ürün kimlikleri
SKU: 2TLA020054R1610
EAN: 7350024484519
GTIN: 7350024484519
MPN: Tina 10C v2
Kategoriler
Özellikler
|
EFI00008
|
3.0314977
|
|
EFI00040
|
1.3779535
|
|
EFI01438
|
0.5511814
|
|
EFI02393
|
14.0|131.0
|
|
EFI07302
|
-|-
|
|
EFI07319
|
-
|
|
EFI08200
|
-|-
|
|
Ethernet
|
hayır
|
|
Output power
|
-
|
|
Input voltage
|
|
|
Rated current
|
-
|
|
Bus system KNX
|
-
|
|
Bus system LON
|
-
|
|
LED controlling
|
evet
|
|
Mounting method
|
DRA (DIN-rail adapter)
|
|
Type of current
|
DC
|
|
Number of inputs
|
|
|
Other bus systems
|
Other
|
|
Bus system Powernet
|
-
|
|
Suitable for C-load
|
evet
|
|
With LED indication
|
evet
|
|
With bus connection
|
evet
|
|
Max. switching power
|
-
|
|
With switch function
|
evet
|
|
Max. switching current
|
5 A
|
|
Number of switch inputs
|
-
|
|
Rated operating voltage
|
24 - 24 V
|
|
Number of input channels
|
-
|
|
Degree of protection (IP)
|
IP67
|
|
Number of output channels
|
-
|
|
Remote operation possible
|
hayır
|
|
Bus system radio frequency
|
-
|
|
Different phases connectable
|
evet
|
|
Switching current (resistive)
|
-
|
|
Local operation/hand operation
|
evet
|
|
External signal voltage necessary
|
evet
|
|
Max. number of switching contacts
|
-
|
|
Bus system KNX-RF (Radio Frequency)
|
-
|
|
Width in number of modular spacings
|
77
|
|
Max. number of venetian-blind outputs
|
|
