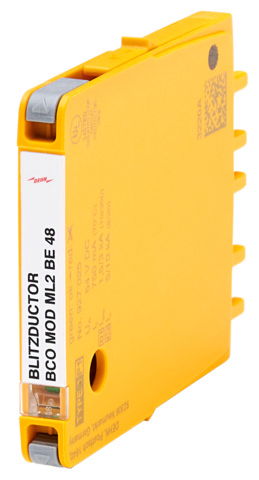

Protection module for 2 single cores BLITZDUCTORconnect w. fault indication
Protection module with a width of 6 mm for BLITZDUCTORconnect combined arrester with status inidication for protecting two single lines sharing a common reference potential as well as unbalanced interfaces.
Ürün kimlikleri
SKU: 927025
EAN: 4013364410145
GTIN: 4013364410145
MPN: BCO MOD ML2 BE 48
Kategoriler
Özellikler
|
Frequency
|
|
|
Connection 1
|
-
|
|
Earthing via
|
Other
|
|
Assembly width
|
6 mm
|
|
Mounting method
|
On basic element
|
|
Limiting frequency
|
5 MHz
|
|
Nominal voltage AC
|
|
|
Nominal voltage DC
|
48.0 - 48.0 V
|
|
Nominal load current
|
0.75 A
|
|
Signal disconnection
|
-
|
|
Explosion-tested version
|
-
|
|
Voltage protection level
|
-
|
|
Degree of protection (IP)
|
IP20
|
|
Pro-active thermo-control
|
evet
|
|
Max. continuous voltage AC
|
38.1 V
|
|
Max. continuous voltage DC
|
54 V
|
|
With remote signalling contact
|
-
|
|
Voltage protection level core/core
|
140 V
|
|
Voltage protection level core/earth
|
90 V
|
|
Lightning impulse current (10/350 µs)
|
3 kA
|
|
Nominal discharge surge current (8/20)
|
10 kA
|
|
Number of conductors (without earthing)
|
2
|
|
Voltage protection level core/signal ground
|
-
|
|
Voltage protection level signal ground/protective ground
|
-
|
