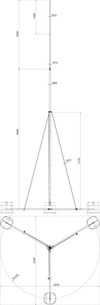

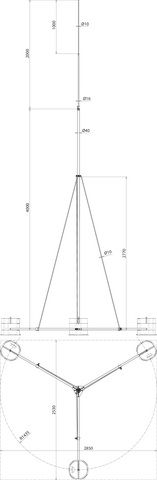

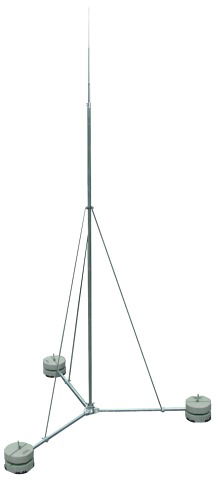

Air-term. rod D 40/22/16/10 mm L 9 m Al with tripod R 1435 mm St/tZn

Self-supporting air-termination rod with hinged tripod and adjustable braces made of stainless steel, tested to DIN EN 62561-(1+2). For protecting large roof-mounted structures, adjustable to a roof slope up to max. 10°. The air-termination rods are dimensioned to Eurocode1 (DIN EN 1991-1-4 + DIN EN 1991-1-4/NA)for a max. gust wind speed of 132 km/h. Version with a height of 9000 mm, including connection clamp for round conductor 6–10 mm.
