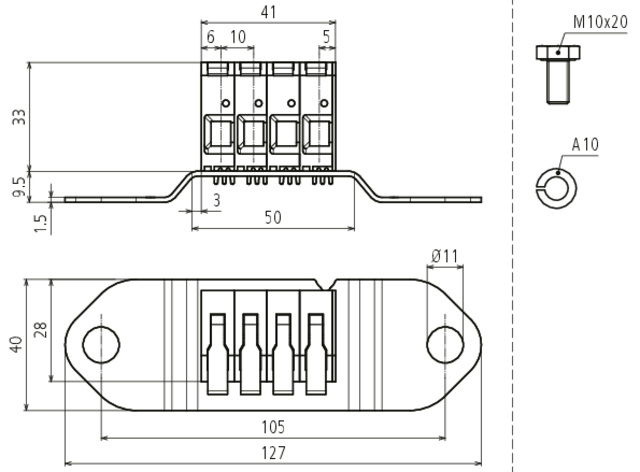

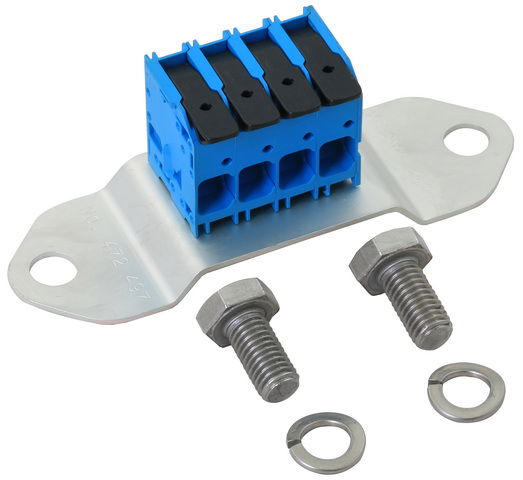

Push-in adapter 4x 4-16 mm² for EB-bar for Ex areas of zone 1/21, 2/22
Push-in adapter for contact of flexible conductors 4x 4-16 mm² on PAS EX... for use in potentially explosive areas of Ex zones 1 and 2 (gases, vapours, mists) as well as Ex zones 21 and 22 (dusts). For use up to explosion group IIC (safety factor 1). For use up to temperature class T4. Screws secured against self-loosening according to VDE 0185-305-3 Supplement 2. Use indoors permissible.
Ürün kimlikleri
SKU: 472497
EAN: 4013364470484
GTIN: 4013364470484
MPN: PAS EX CC
Kategoriler
Teknik özellikler
| Height | 33 mm |
| Length pin | - |
| Rated voltage | 800 V |
| Housing colour | Blue |
| Type of banding | - |
| Number of levels | 1 |
| Pollution degree | - |
| Rated current In | - |
