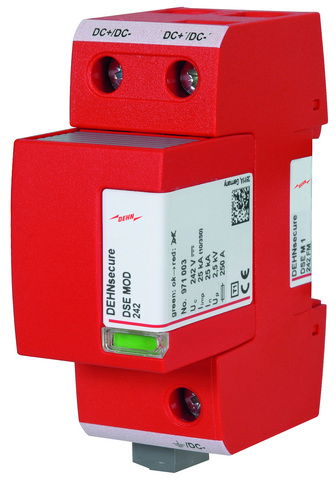

Coord. lightn. current arrester Type 1 DEHNsecure M for d.c. circuits
Coordinated and modular single-pole spark-gap-based DEHNsecure lightning current arrester (classification type 1 according to EN 61643-11). Spark gap technology particularly suited for use in d.c. circuits. For protecting low-voltage consumer´s installations against surges and even direct lightning strikes. For installation in conformity with the lightning protection zone concept at the boundaries from 0A – 1.
Ürün kimlikleri
SKU: 971127
EAN: 4013364144484
GTIN: 4013364144484
MPN: DSE M 1 242 FM
Kategoriler
Özellikler
|
Exhausting
|
-
|
|
Category type 1
|
evet
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Construction size
|
2 modular spacing
|
|
Nominal voltage AC
|
-
|
|
Nominal voltage DC
|
-
|
|
Specific energy (W/R)
|
156.25 kJ/Ohm
|
|
Integrated backup fuse
|
-
|
|
System configuration DC
|
evet
|
|
System configuration IT
|
-
|
|
System configuration TN
|
-
|
|
System configuration TT
|
-
|
|
Signalling at the device
|
Optical
|
|
Suitable for outdoor use
|
-
|
|
Voltage protection level
|
2.5 kV
|
|
Degree of protection (IP)
|
IP20
|
|
System configuration TN-C
|
-
|
|
System configuration TN-S
|
-
|
|
Max. continuous voltage AC
|
255 V
|
|
Max. continuous voltage DC
|
242 V
|
|
System configuration other
|
-
|
|
System configuration TN-C-S
|
-
|
|
Voltage protection level L-N
|
-
|
|
Voltage protection level N-PE
|
-
|
|
With remote signalling contact
|
evet
|
|
Voltage protection level (DC+ - DC-)
|
-
|
|
Lightning impulse current (10/350 µs)
|
25 kA
|
|
Nominal discharge surge current (8/20)
|
-
|
|
Follow current extinguishing capability
|
-
|
|
Number of conductors (without earthing)
|
1
|
|
Voltage protection level (DC+/DC- - PE)
|
-
|
|
Max. conductor cross section flexible (fine-strand)
|
35 mm²
|
|
Max. conductor cross section solid (solid, stranded)
|
50 mm²
|
