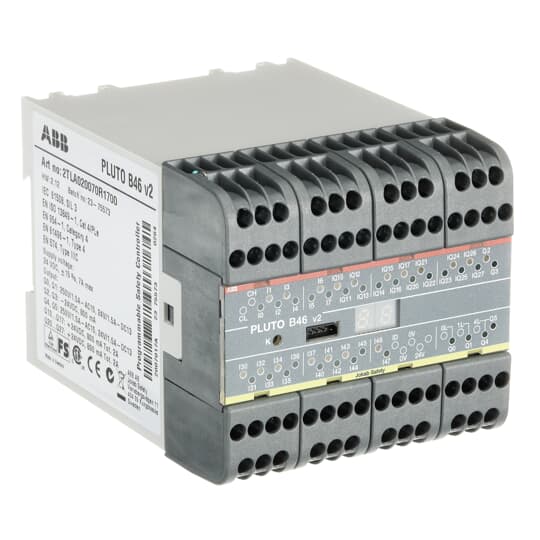

Pluto B46 v2 Programmable safety controller
Pluto is a cost effective, powerful and compact safety PLC for all machine safety applications. Most safety devices on the market can be connected directly to Pluto and multiple safety sensors can be connected to a single input and still achieve the highest safety level. Programming is done easily in the accompanying software Pluto Manager. Safety PLC with Pluto safety bus. Totally 46 I/O: 24 failsafe inputs + 16 non-failsafe outputs/failsafe inputs + 4 individually failsafe relay outputs + 2 individually failsafe transistor outputs.
Ürün kimlikleri
SKU: 2TLA020070R1700
EAN: 7320500410615
GTIN: 7320500410615
MPN: Pluto B46 v2
Kategoriler
Özellikler
|
Depth
|
120 mm
|
|
Model
|
Compact
|
|
Width
|
90 mm
|
|
Height
|
84 mm
|
|
EFI00008
|
-
|
|
EFI00040
|
-
|
|
EFI00049
|
-
|
|
Redundancy
|
evet
|
|
Memory size
|
128 kByte
|
|
With display
|
evet
|
|
IO link master
|
hayır
|
|
Type of memory
|
FLASH
|
|
System accessory
|
hayır
|
|
Supply voltage DC
|
24 - 24 V
|
|
Radio standard GSM
|
hayır
|
|
Radio standard GPRS
|
hayır
|
|
Radio standard UMTS
|
hayır
|
|
Rack-assembly possible
|
hayır
|
|
With optical interface
|
hayır
|
|
Front built-in possible
|
hayır
|
|
Number of relay outputs
|
4
|
|
Supply voltage AC 50 Hz
|
|
|
Supply voltage AC 60 Hz
|
|
|
Number of digital inputs
|
40
|
|
Radio standard Bluetooth
|
hayır
|
|
Long-Term Evolution (LTE)
|
hayır
|
|
Number of analogue inputs
|
3
|
|
Number of digital outputs
|
22
|
|
Number of analogue outputs
|
|
|
Radio standard WLAN 802.11
|
hayır
|
|
SIL according to IEC 61508
|
3
|
|
Suitable for rail mounting
|
evet
|
|
Number of HW-interfaces USB
|
|
|
Supporting protocol for ASI
|
hayır
|
|
Supporting protocol for CAN
|
evet
|
|
Supporting protocol for KNX
|
hayır
|
|
Supporting protocol for LON
|
hayır
|
|
Max. number of time switches
|
256
|
|
Supporting protocol for DNP3
|
hayır
|
|
Number of HW-interfaces other
|
1
|
|
Number of interfaces PROFINET
|
|
|
Suitable for safety functions
|
evet
|
|
Voltage type (supply voltage)
|
DC
|
|
Wall mounting/direct mounting
|
hayır
|
|
Number of HW-interfaces RS-232
|
1
|
|
Number of HW-interfaces RS-422
|
|
|
Number of HW-interfaces RS-485
|
|
|
Supporting protocol for Modbus
|
hayır
|
|
Supporting protocol for SERCOS
|
hayır
|
|
Supporting protocol for TCP/IP
|
hayır
|
|
Supporting protocol for SUCONET
|
hayır
|
|
Number of HW-interfaces parallel
|
|
|
Number of HW-interfaces wireless
|
|
|
Supporting protocol for EtherCAT
|
hayır
|
|
Supporting protocol for INTERBUS
|
hayır
|
|
Supporting protocol for PROFIBUS
|
evet
|
|
Appendant operation agent (Ex ia)
|
hayır
|
|
Appendant operation agent (Ex ib)
|
hayır
|
|
Explosion safety category for gas
|
None
|
|
Supporting protocol for DeviceNet
|
hayır
|
|
Supporting protocol for IEC 60870
|
hayır
|
|
Supporting protocol for PROFIsafe
|
hayır
|
|
Additional program memory possible
|
hayır
|
|
Explosion safety category for dust
|
None
|
|
Supporting protocol for EtherNet/IP
|
hayır
|
|
Supporting protocol for PROFINET IO
|
hayır
|
|
Supporting protocol for SafetyBUS p
|
hayır
|
|
Supporting protocol for Data-Highway
|
hayır
|
|
Supporting protocol for PROFINET CBA
|
hayır
|
|
Processing time (1K, binary operation)
|
1 ms
|
|
Supporting protocol for INTERBUS-Safety
|
hayır
|
|
Supporting protocol for DeviceNet Safety
|
hayır
|
|
Supporting protocol for other bus systems
|
evet
|
|
Supporting protocol for IEC 61850 Ethernet
|
hayır
|
|
Certified for UL hazardous location class I
|
hayır
|
|
Number of HW-interfaces industrial Ethernet
|
|
|
Supporting protocol for Foundation Fieldbus
|
hayır
|
|
Certified for UL hazardous location class II
|
hayır
|
|
Certified for UL hazardous location class III
|
hayır
|
|
Performance level according to EN ISO 13849-1
|
None
|
|
Certified for UL hazardous location division 1
|
hayır
|
|
Certified for UL hazardous location division 2
|
hayır
|
|
Supporting protocol for AS-Interface Safety at Work
|
hayır
|
|
Certified for UL hazardous location group D (propane)
|
hayır
|
|
Certified for UL hazardous location group B (hydrogen)
|
hayır
|
|
Certified for UL hazardous location group C (ethylene)
|
hayır
|
|
Certified for UL hazardous location group A (acetylene)
|
hayır
|
|
Certified for UL hazardous location group E (metal dusts)
|
hayır
|
|
Certified for UL hazardous location group F (carbonaceous dusts)
|
hayır
|
|
Certified for UL hazardous location group G (non-conductive dusts)
|
hayır
|
