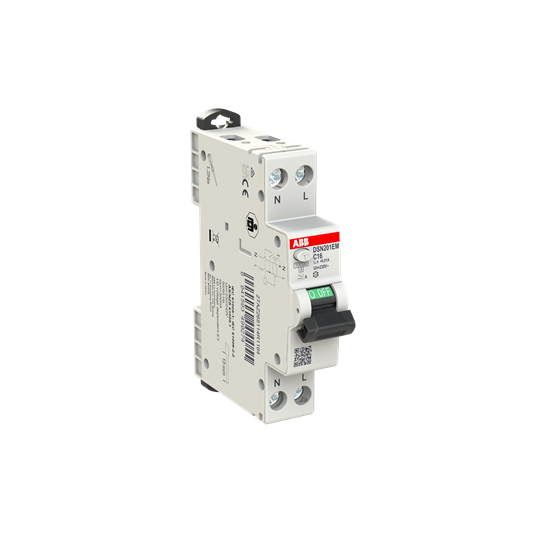

DSN201E M C16 A10 - CeRCBO 4T – Görsel 2 / 3

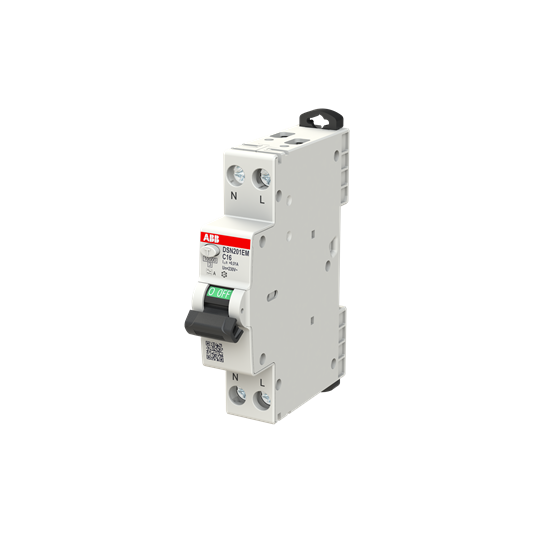

DSN201E M C16 A10 - CeRCBO 4T – Görsel 3 / 3

1 / 3

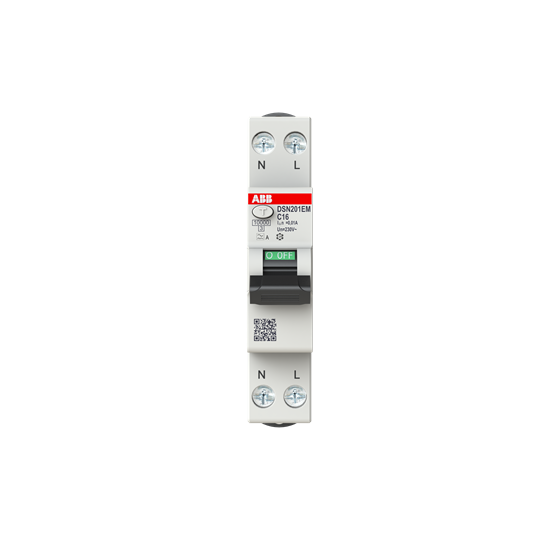

DSN201E M C16 A10 - CeRCBO 4T

Name: DSN201E M C16 A10 - CeRCBO 4T
Brand: ABB
SKU: 2TAZ265114R1164

1P+N electronic RCBO in one-module width for the protection of end user single-phase circuits against overload and short-circuit currents; protection against the effects of sinusoidal alternating earth fault currents; protection against indirect contacts and additional protection against direct contacts (with sensitivity = 30 mA). The neutral is switched

Ürün kimlikleri

SKU: 2TAZ265114R1164

EAN: 6941593498574

GTIN: 6941593498574

MPN: DSN201E M C16 A10

Kategoriler

Switchgear & Circuit Protection Circuit Breakers RCBOs

ETIM grubu

Circuit breakers and fuses

Teknik özellikler

EFI00218	2.75590
EFI07337	0.0015\|0.0387
EFI07343	0.0015\|0.0248
EFI07515	-13\|131
Frequency	50/60 Hz
Voltage type	AC
Rated current	16 A
Rated voltage	240 V
Built-in depth	70 mm
Pollution degree	2
Rated fault current	0.01 A
Leakage current type	A
Over voltage category	3
Current limiting class	3
Release characteristic	C
Surge current capacity	-
Number of poles (total)	2
With interlocking device	-
Degree of protection (IP)	IP20
Number of protected poles	1
Flush-mounted installation	-
Rated insulation voltage Ui	500 V
Disconnection characteristic	Undelayed
Anti-nuisance tripping version	-
Width in number of modular spacings	1
Ambient temperature during operating	-25 - 55 °C
Rated impulse withstand voltage Uimp	4 kV
Concurrently switching neutral conductor	-
Connectable conductor cross section solid-core	1 - 25 mm²
Connectable conductor cross section multi-wired	1 - 16 mm²
Rated short-circuit breaking capacity according to EN 61009	10 kA
Rated short-circuit breaking capacity according to IEC 60947-2	10 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1	10 kA
