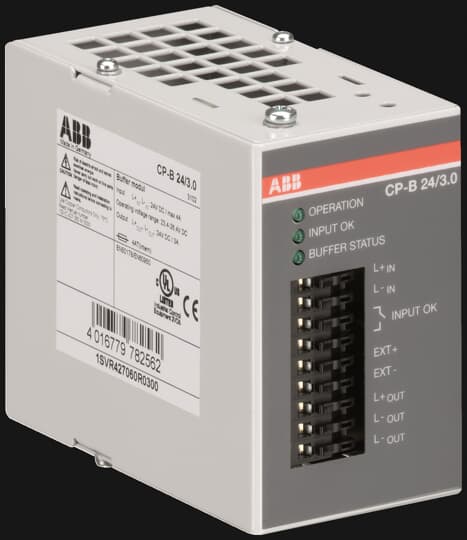

CP-B 24/3.0 Buffer module 24 V / 3 A, energy storage 1000 Ws

Name: CP-B 24/3.0 Buffer module 24 V / 3 A, energy storage 1000 Ws
Brand: ABB
SKU: 1SVR427060R0300

Ürün kimlikleri

SKU: 1SVR427060R0300

EAN: 4016779782562

GTIN: 4016779782562

MPN: CP-B 24/3.0

Kategoriler

Transformers & Power Supplies DIN Rail Power Supplies

Low-voltage industrial components

Depth	126.2 mm
Width	60 mm
Height	100 mm
EFI00008	-
EFI00040	-
EFI00049	-
EFI00332	-
EFI00846	-
Stabilized	evet
Power output	69 W
Built-in width	60 mm
Built-in height	100 mm
Modular version	hayır
Power consumption	7 VA
Short-circuit-proof	evet
Max. output current 1	-
Max. output current 2
Max. output current 3
Wall mounting possible	hayır
Rated supply voltage DC	24 - 24 V
Direct mounting possible	hayır
Degree of protection (IP)	IP20
Output voltage stabilized	evet
SIL according to IEC 61508	None
Suitable for rail mounting	evet
Degree of protection (NEMA)	1
Type of electric connection	Spring clamp connection
1st secondary output voltage	24 - 24 V
2nd secondary output voltage
3rd secondary output voltage
Secondary voltage adjustable	hayır
Rated supply voltage AC 50 Hz
Rated supply voltage AC 60 Hz
Suitable for safety functions	hayır
Voltage type (supply voltage)	AC/DC
Nominal value output current 1	3 A
Nominal value output current 2
Nominal value output current 3
Nominal value output voltage 1	24 V
Nominal value output voltage 2
Nominal value output voltage 3
Width in number of modular spacings	-
Performance level according to EN ISO 13849-1	None
