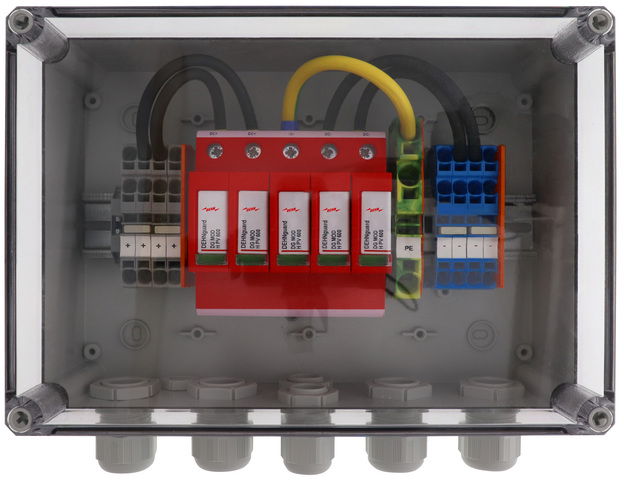

GJB in IP65 enclosure for PV systems 2MPPT and 2 strings at 1100V d.c.
Generator junction box DCU 2 YPV 1100 2M 2S in degree of protection IP65. In accordance with DIN EN IEC 61439-2 for protecting 2 MPP inputs and 2 strings each. Three-stage DC switching device with combined disconnection and short-circuiting device with safe electrical isolation. For use in accordance with DIN IEC 60364-7-712:2011-04 (setting up photovoltaic supply systems).
Ürün kimlikleri
SKU: 900923
EAN: 4013364492400
GTIN: 4013364492400
MPN: DCU 2 YPV 1100 2M 2S
Kategoriler
Özellikler
|

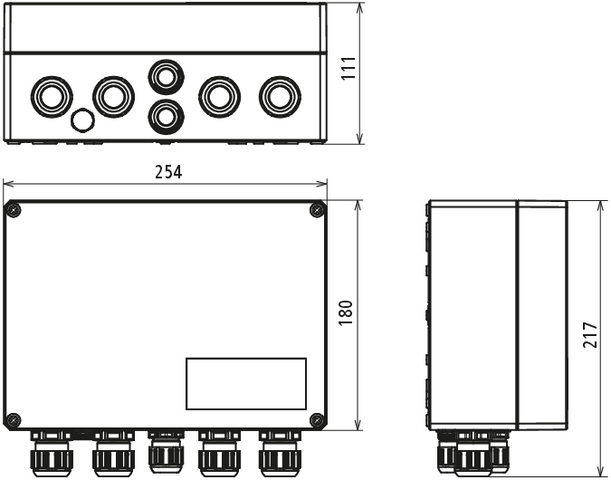

Depth
|
111 mm
|
|
Width
|
254 mm
|
|
Colour
|
Grey
|
|
Height
|
180 mm
|
|
Material
|
Plastic
|
|
Fuse type
|
-
|
|
For fuse size
|
-
|
|
Type of inlet
|
Gland nut
|
|
Output voltage
|
-
|
|
Category type 1
|
-
|
|
Category type 2
|
-
|
|
Category type 3
|
-
|
|
Fuse size input
|
-
|
|
Impact strength
|
IK08
|
|
Number of inputs
|
-
|
|
Communication bus
|
-
|
|
String protection
|
-
|
|
Max. output current
|
40 A
|
|
Monitoring function
|
-
|
|
Operating temperature
|
|
|
Communications protocol
|
-
|
|
Number of conduit inlets
|
14
|
|
Degree of protection (IP)
|
IP65
|
|
Max. voltage measuring range, DC
|
1100
|
|
Suitable for max. current main contact unit
|
-
|
