EFI00218	3.248025
EFI07337	0\|0.1085
EFI07343	0\|0.0775
EFI07515	-13\|140
Frequency	50 - 60 Hz
Voltage type	Other
Rated current	1 A
Rated voltage	400 V
Built-in depth	82.5 mm
Explosion-proof	hayır
Pollution degree	3
Over voltage category	4
Current limiting class	3
Release characteristic	C
Number of poles (total)	2
Degree of protection (IP)	IP20
Number of protected poles	2
Flush-mounted installation	evet
Rated insulation voltage Ui	690 V
Additional equipment possible	evet
Width in number of modular spacings	3
Ambient temperature during operating	-25 - 60 °C
Rated impulse withstand voltage Uimp	8 kV
Concurrently switching neutral conductor	evet
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	25 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	30 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	50 kA

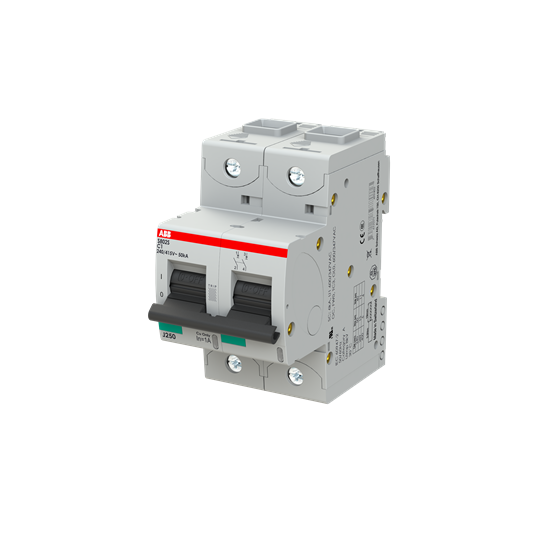

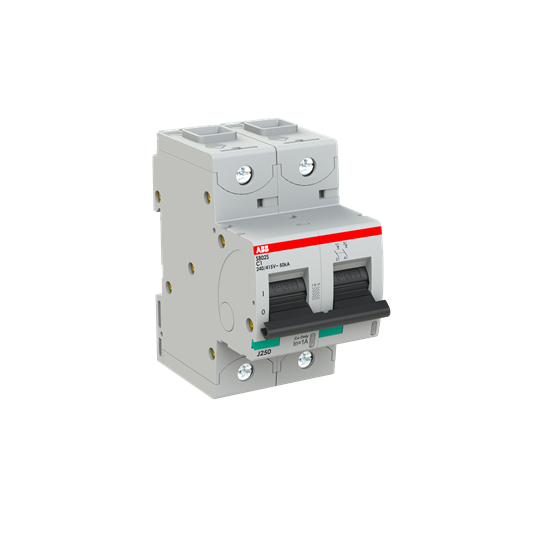

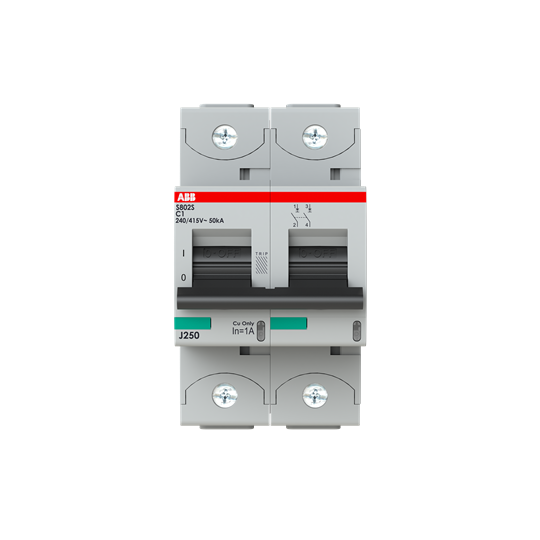

High Performance MCB
