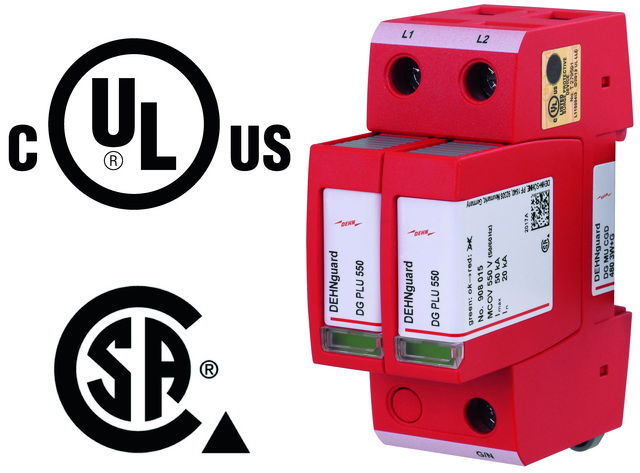

Surge arrester type 2 DEHNguard M
The multipole DEHNguard MU surge arrester, open-type 1 SPD as per ANSI/UL 1449, consisting of the base part and plug-in protection modules. High device reliability due to arrester monitoring with "Thermo Dynamic Control". Allows protection of terminal equipment. For the protection of corner-grounded delta systems.
Ürün kimlikleri
SKU: 908204
EAN: 4013364148666
GTIN: 4013364148666
MPN: DG MU CGD 480 3W+G
Kategoriler
Teknik özellikler
| Category type 2 | - |
| Max. PV-voltage | - |
| Mounting method | DIN rail (top hat rail) 35 mm |

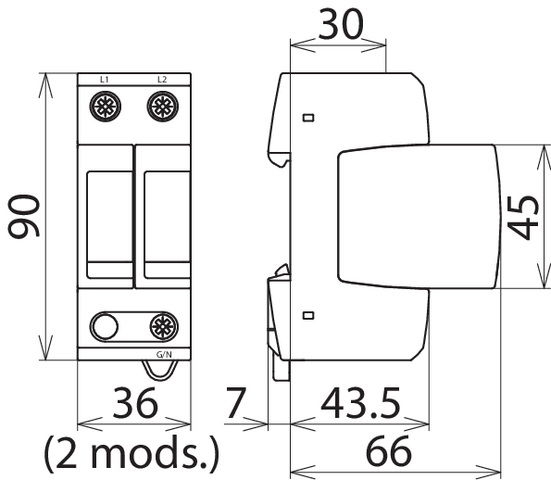

| Construction size | 2 modular spacing |
| Nominal voltage AC | 480 V |
| Nominal voltage DC | - |
| Leakage-current free | - |
| Integrated backup fuse | - |
