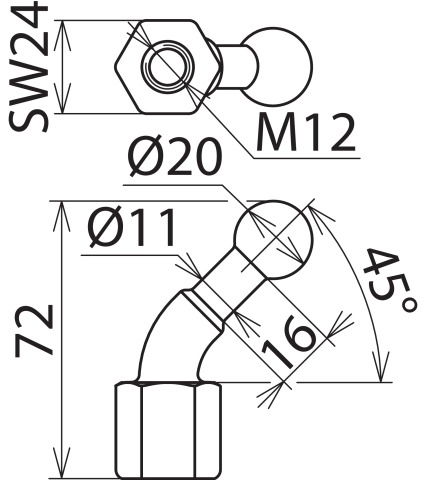

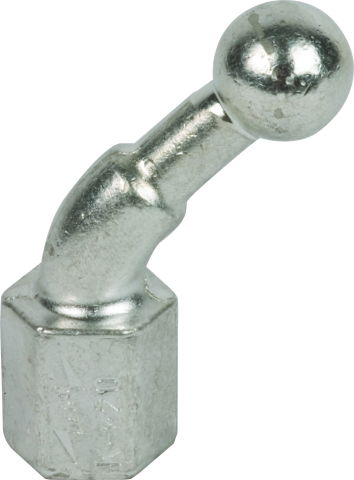

Fixed ball point D 20mm angled (45°) with female thread M12
Fixed ball point 45° angled with female thread as line and earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100) at the conductor and earth-termination system. High mechanical strength due to female thread (not cut). Suitable for fixing cable lugs or connecting busbars in accordance with DIN 43673-1.
Ürün kimlikleri
SKU: 706200
EAN: 4013364004276
GTIN: 4013364004276
MPN: KFP 20 W45 M12
Kategoriler
Teknik özellikler
| Mounting method | With internal thread |
| Construction type | Angled |
| Diameter fixed point | 20 mm |
| Max. short circuit current | 19.5 kA |
| Suitable for round conductors | - |
| Max. wire cross section copper | 70 mm² |
| Connection of the earthing and short circuit device | Fixed ball point 20 mm |
