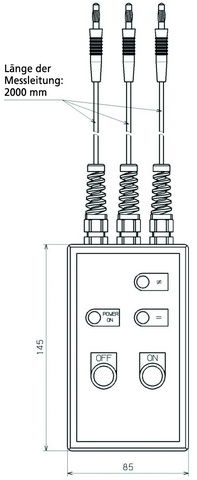

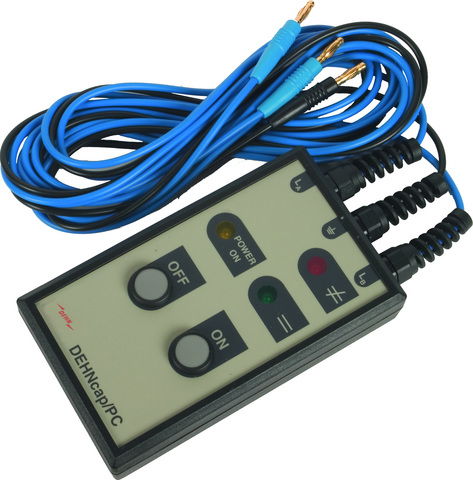

DEHNcap/PC-LRM phase comparator
Active electronic phase comparator DEHNcap/PC-LRM with three separate LEDs according to EN/IEC 61243-5 (DIN VDE 0682-415) for verifying in-phase conditions on all poles in switchgear installations with LRM test sockets. Can be used for HR test sockets by means of two HR-LRM test adapters. For nominal voltages up to 45 kV / 50 Hz (three-phase system). With integrated self-testing element and battery monitoring. Device detects zero crossings of the two systems to be compared.
Ürün kimlikleri
SKU: 767132
EAN: 4013364073005
GTIN: 4013364073005
MPN: PV DCA PC LRM
Teknik özellikler
| Model | - |
| Frequency | 50 Hz |
| Construction | - |
| Total length | - |
| Immersing depth | - |
| Nominal voltage | 1.0 - 45.0 kV |
| Type of indication | Optical |
| Usable at precipitation | - |
