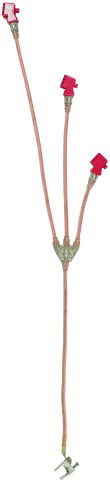

Three-pole earthing and short-circuiting device VI 25mm² for phase T pins
Earthing and short-circuiting device VI. Fully insulated and shock-proof version. Spring-loaded earth clamp, clamping range up to 24 mm, installation via adjustable handle (Part No. 745 921). For cable distribution cabinets. Variant No. of the earthing and short-circuiting device: VMRSJWD. Other cable lengths can be configured online via the earthing and short-circuiting configurator at www.dehn.de/en/euk.
Ürün kimlikleri
SKU: VMRSJWD
EAN: 4013364163805
GTIN: 4013364163805
MPN: EKV3 25VI EK VMRSJWD
Kategoriler
Özellikler
|
Model
|
Cable
|
|
Material
|
Copper
|
|
Fully insulated
|
evet
|
|
Number of poles
|
3
|
|
Length earth line
|
500 mm
|
|
Length 1-pole rope
|
-
|
|
Length phaseline a
|
200 mm
|
|
Length phaseline b
|
400 mm
|
|
Length phaseline c
|
600 mm
|
|
Max. short circuit current
|
7 kA
|
|
Connecting part, earth-side
|
Other
|
|
Connecting part, phase-side
|
Other
|
|
Wire cross section, earth-side
|
25 mm²
|
|
Wire cross section, phase-side
|
25 mm²
|
