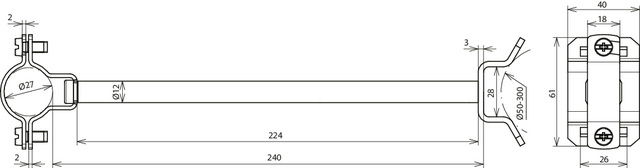

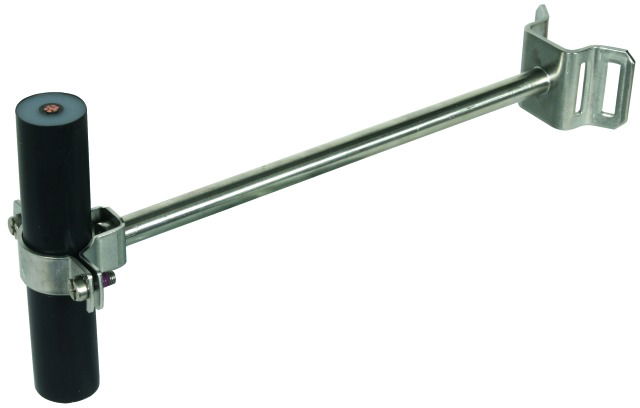

HVI Ex P240 holder StSt f. Conduc. D27mm dist. 240mm w bracket f. tubes 50-300mm
Conductor holder for fixing to pipes, e.g. with pipe clamp for HVI power Conductor installation in explosion hazardous areas Ex zone 1 (gases, vapours, mists) as well as Ex zone 21 (dusts). The special installation conditions safely prevent electric sparks to neighbouring metal parts when lightning current flows through the HVI power Conductor. Design with spacer bar distance 250 mm, for fixing on metal construction parts (e.g. facades).
Ürün kimlikleri
SKU: 275455
EAN: 4013364244535
GTIN: 4013364244535
MPN: LH ZS 27 EX P240 SBB V2A
Kategoriler
Özellikler
|
Wall distance
|
250.0 - 250.0 mm
|
|
Material base part
|
Stainless steel 304 (V2A)
|
|
Material of holder
|
Stainless steel 304 (V2A)
|
|
Material of carrier
|
Stainless steel 304 (V2A)
|
|
Pipe chucking range
|
50.0 - 300.0 mm
|
|
Mounting type holder
|
Other
|
|
Thread size (metric)
|
-
|
|
Mounting type conductor
|
With screw clamp
|
|
Material of saddle clamp
|
Stainless steel 304 (V2A)
|
|
Suitable for EX-applications
|
evet
|
|
Assembly height conductor holder
|
16 mm
|
|
Suitable for width flat conductor
|
|
|
Suitable for diameter round conductor
|
27.0 - 27.0 mm
|
