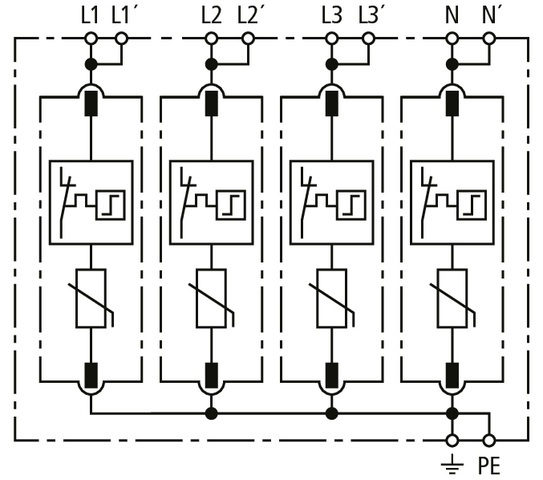

Surge arrester type 2 DEHNguard MP 4-pole Uc 275V for TN-S systems
Multipole type-2 + type-3 DEHNguard MP surge arrester, according to EN 61643-11, consisting of a base part and plug-in protection modules and double-push-in connection clamp suitable for stub wiring and feed-through wiring. High device reliability due to Thermo Dynamic Control arrester monitoring. For protecting low-voltage consumer installations against surges. For installation in conformity with the lightning protection zone concept at the boundaries from 0B – 1 and higher.
Ürün kimlikleri
SKU: 942400
EAN: 4013364484115
GTIN: 4013364484115
MPN: DG MP TNS 275
Teknik özellikler
| Category type 2 | evet |
| Max. PV-voltage | - |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Construction size | 4 modular spacing |
| Nominal voltage AC | 230 V |
| Nominal voltage DC | - |
| Leakage-current free | - |
| Integrated backup fuse | - |
