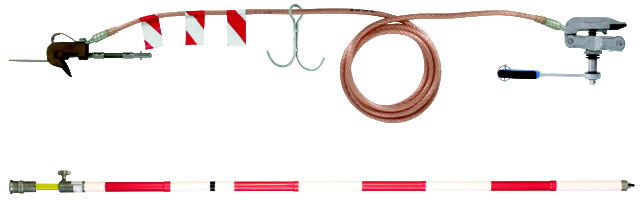

Earthing device f. railways f. overhead lines (profile-free),ratchet, hook -SET-

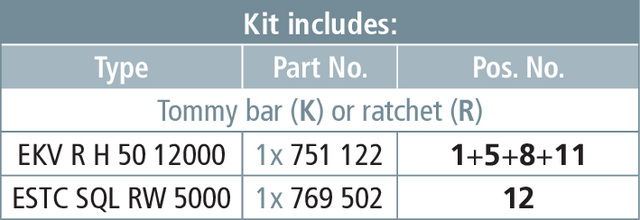

Earthing and short-circuiting kit (profile-free) in accordance with EN/IEC 61230 ( DIN VDE 0683-100) for earthing and short-circuiting of electrical overhead lines at the work location in accordance with EN 50110 (DIN VDE 0105-100). Telescopic earthing stick and single-pole earthing and short-circuiting device, 12 m long with hook, (ratchet) included.
Ürün kimlikleri
SKU: 750219
EAN: 4013364157231
GTIN: 4013364157231
MPN: BEV OL PF R
Kategoriler
Özellikler
|
Model
|
Cable
|
|
Material
|
Copper
|
|
Fully insulated
|
-
|
|
Number of poles
|
1
|
|
Length earth line
|
-
|
|
Length 1-pole rope
|
12000 mm
|
|
Length phaseline a
|
-
|
|
Length phaseline b
|
-
|
|
Length phaseline c
|
-
|
|
Max. short circuit current
|
32 kA
|
|
Connecting part, earth-side
|
Other
|
|
Connecting part, phase-side
|
Other
|
|
Wire cross section, earth-side
|
50 mm²
|
|
Wire cross section, phase-side
|
50 mm²
|
