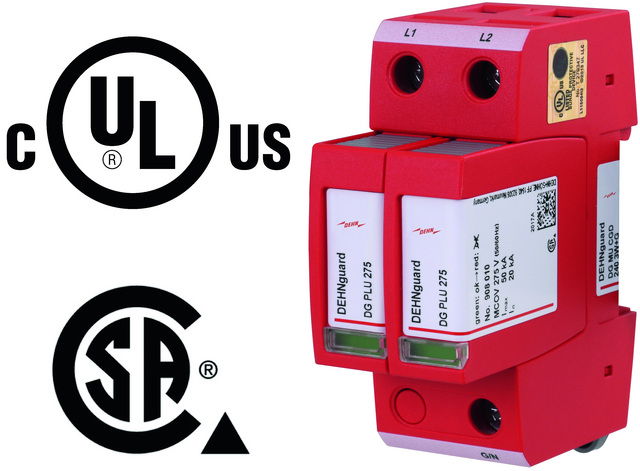

Surge arrester type 2 DEHNguard M
The multipole DEHNguard MU surge arrester, open-type 1 SPD as per ANSI/UL 1449, consisting of the base part and plug-in protection modules. High device reliability due to arrester monitoring with "Thermo Dynamic Control". Allows protection of terminal equipment. For the protection of corner-grounded delta systems.
Ürün kimlikleri
SKU: 908203
EAN: 4013364148642
GTIN: 4013364148642
MPN: DG MU CGD 240 3W+G
Kategoriler
Özellikler
|
Category type 2
|
-
|
|
Max. PV-voltage
|
-
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|

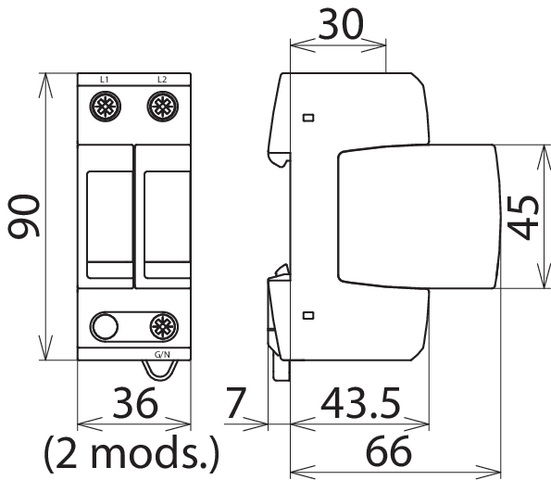

Construction size
|
2 modular spacing
|
|
Nominal voltage AC
|
240 V
|
|
Nominal voltage DC
|
-
|
|
Leakage-current free
|
-
|
|
Integrated backup fuse
|
-
|
|
System configuration DC
|
-
|
|
System configuration IT
|
-
|
|
System configuration TN
|
-
|
|
System configuration TT
|
-
|
|
Signalling at the device
|
Optical
|
|
Voltage protection level
|
1.5 kV
|
|
Degree of protection (IP)
|
IP20
|
|
System configuration TN-C
|
-
|
|
System configuration TN-S
|
-
|
|
Max. continuous voltage AC
|
550 V
|
|
Max. continuous voltage DC
|
-
|
|
System configuration other
|
-
|
|
System configuration TN-C-S
|
-
|
|
Voltage protection level L-N
|
-
|
|
Voltage protection level N-PE
|
-
|
|
With remote signalling contact
|
-
|
|
Integrated short-circuit protection
|
-
|
|
Max. discharge surge current (8/20)
|
50 kA
|
|
Nominal discharge surge current (8/20)
|
20 kA
|
|
Number of conductors (without earthing)
|
2
|
|
Short-circuit breaking capacity (Isccr)
|
-
|
|
Max. conductor cross section flexible (fine-strand)
|
25 mm²
|
|
Max. conductor cross section solid (solid, stranded)
|
25 mm²
|
|
Integrated short-circuit protection selective to fuse gG
|
-
|
|
Max. overcurrent protection device, series connection (fuse)
|
-
|
|
Max. overcurrent protection device, parallel connection (fuse)
|
-
|
