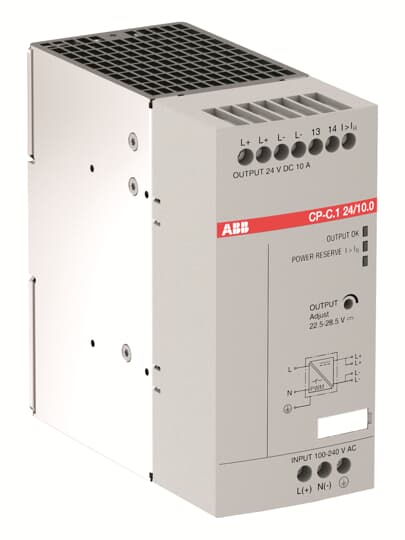

CP-C.1 24/10.0-L Power supply In:100-240VAC/90-300VDC Out:DC 24V/10A

Name: CP-C.1 24/10.0-L Power supply In:100-240VAC/90-300VDC Out:DC 24V/10A
Brand: ABB
SKU: 1SVR361663R1001

Ürün kimlikleri

SKU: 1SVR361663R1001

EAN: 4053546028126

GTIN: 4053546028126

MPN: CP-C.1 24/10.0-L

Kategoriler

Transformers & Power Supplies Power Supplies

Low-voltage industrial components

Depth	136 mm
Width	60 mm
Height	129.4 mm
EFI00008	-
EFI00040	-
EFI00049	-
EFI00332	-
EFI00846	-
Stabilized	evet
Power output	240 W
Built-in width	60 mm
Built-in height	129.4 mm
Modular version	hayır
Power consumption	256 VA
Short-circuit-proof	evet
Max. output current 1	15 A
Max. output current 2
Max. output current 3
Wall mounting possible	hayır
Rated supply voltage DC	90 - 300 V
Direct mounting possible	hayır
Degree of protection (IP)	IP20
Output voltage stabilized	evet
SIL according to IEC 61508	None
Suitable for rail mounting	evet
Degree of protection (NEMA)	1
Type of electric connection	Screw connection
1st secondary output voltage	24 - 24 V
2nd secondary output voltage
3rd secondary output voltage
Secondary voltage adjustable	hayır
Rated supply voltage AC 50 Hz	85 - 264 V
Rated supply voltage AC 60 Hz	85 - 264 V
Suitable for safety functions	hayır
Voltage type (supply voltage)	AC/DC
Nominal value output current 1	10 A
Nominal value output current 2
Nominal value output current 3
Nominal value output voltage 1	24 V
Nominal value output voltage 2
Nominal value output voltage 3
Width in number of modular spacings	-
Performance level according to EN ISO 13849-1	None

Deeplink product page
Deeplink REACH
Dimensioned drawing
Instructions for use
Product data sheet
Declaration RoHS
Declaration DOC CE (Declaration of conformity CE)
