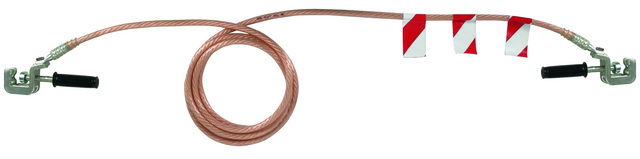

Earthing device f. railways f. earthing constr. machines at dedicated busbars DB Z. No. 3 Ebgw 01.56

Earthing device f. railways f. earthing constr. machines at dedicated busbars DB Z. No. 3 Ebgw 01.56

Single-pole earthing and short-circuiting device in accordance with EN/IEC 61230 (DIN VDE 0683-100) for construction machines, lifting gear and maintenance vehicles; 8.5 m long, universal clamp, plastic handle on both sides.

Ürün kimlikleri

SKU: 751192
EAN: 4013364123885
GTIN: 4013364123885
MPN: BEV MF LTE

Teknik özellikler

Model Cable
Material Copper
Fully insulated hayır
Number of poles 1
Length earth line -
Length 1-pole rope 8500 mm
Length phaseline a -
Length phaseline b -
Max. short circuit current 34 kA
Connecting part, phase-side Universal clamp 25/30 mm
Wire cross section, phase-side 50 mm²
