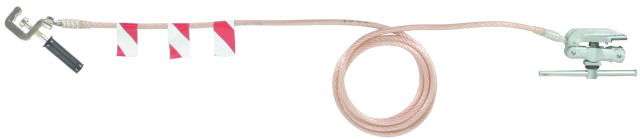

Earthing device f. railways f. earthing constr. machines at rails of adj. tracks

Earthing device f. railways f. earthing constr. machines at rails of adj. tracks

Single-pole earthing and short-circuiting device in accordance with EN/IEC 61230 (DIN VDE 0683-100) for masts or construction machines, lifting gear and maintenance vehicles for earthing next to railway tracks; 8.5 m long, with universal clamp, plastic handle and clamp for railway tracks (tommy bar).

Ürün kimlikleri

SKU: 751193
EAN: 4013364123892
GTIN: 4013364123892
MPN: BEV BM HZ BDW K

Teknik özellikler

Model Cable
Material Copper
Fully insulated hayır
Number of poles 1
Length earth line -
Length 1-pole rope 12000 mm
Length phaseline a -
Length phaseline b -
Max. short circuit current -
Connecting part, phase-side Universal clamp 25/30 mm
Wire cross section, phase-side 50 mm²
