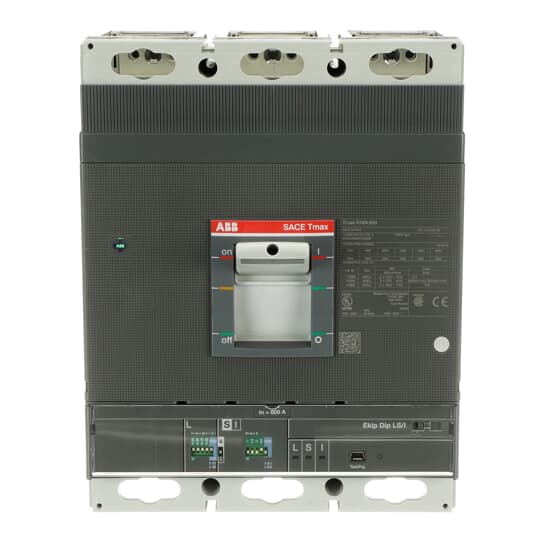

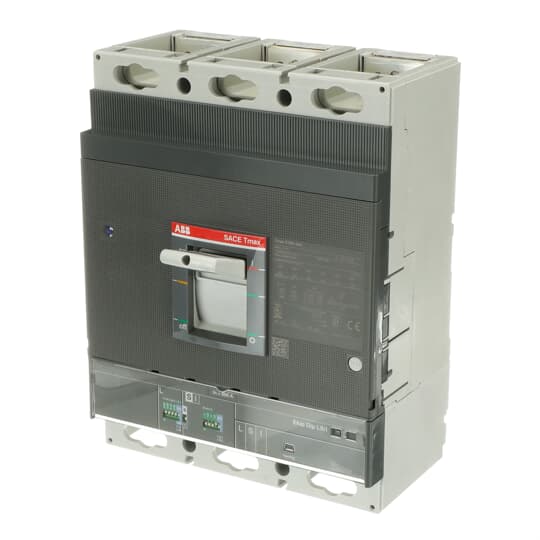

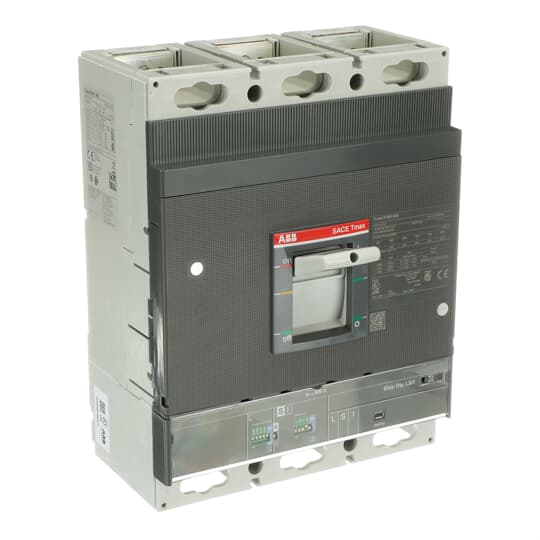

XT6N 800 Ekip Dip LS/I 600 3p FF UL/CSA

Link copied
SKU
EAN
GTIN
MPN
C.BREAKER TMAX XT6N 800 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP DIP LS/I R 600

Teknik özellikler

Rated voltage 600 - 600 V
Number of poles 3
Device construction Built-in device fixed built-in technique
Motor drive optional evet
Motor drive integrated hayır
Type of control element Toggle
Degree of protection (IP) IP20
Rated permanent current Iu 600 A
Overload release current setting 240.0 - 600 A
Complete device with protection unit evet
DIN rail (top hat rail) mounting optional hayır
Type of electrical connection of main circuit Bolt connection
Adjustment range undelayed short-circuit release 600 - 6000 A
Number of auxiliary contacts as normally open contact
Adjustment range short-term delayed short-circuit release 600 - 6000 A

Belgeler

Deeplink product page

Aç

Deeplink REACH

1SDL000282R1448 - REACh (MCCBs ACBs and SSCBs).pdf

Aç

Dimensioned drawing

1SDH002065A1190.stp

Aç

Instructions for use

1SDH002012A1002.pdf

Aç

Product data sheet

Aç

Declaration RoHS

1SDL000282R1377 - RoHS II (MCCBs, ACBs and SSCBs).pdf

Aç

Declaration DOC CE (Declaration of conformity CE)

EC Conformity Declaration XT6- 1SDH000165R0045 v4.pdf

Aç

Declaration EPD (Environmental Product Declaration)

ABBG-00075-V01.02-EN - EPD Tmax XT XT6 ELT (IT).pdf

Aç
