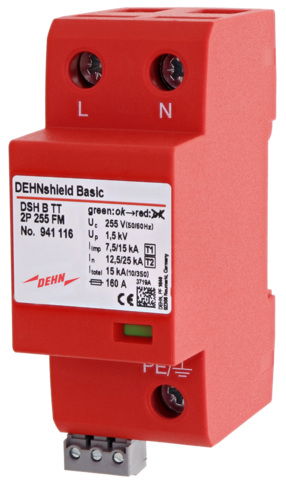

Appl.-opt. combined arrester DEHNshield B type 1+2 f. single-phase TT a. TN systems

Multipole spark-gap-based combined lightning current and surge arrester DEHNshield Basic (type 1 and type 2) according to EN 61643-11. Compact design due to space-saving spark gap technology with a width of only 1 module / pole. For use in residential buildings which are retrofitted or refurbished. Capable of protecting terminal equipment. Meets all requirements of IEC 60364-5-53 and IEC 60364-4-44. Can be installed directly at the origin of the electrical installation.

Ürün kimlikleri

SKU: 941116
EAN: 4013364373235
GTIN: 4013364373235
MPN: DSH B TT 2P 255 FM

Kategoriler

Switchgear & Circuit Protection Circuit Breakers RCDs

Teknik özellikler

Test class Type 1 + 2
Max. PV-voltage -
Mounting method DIN rail (top hat rail) 35 mm
Number of poles 2

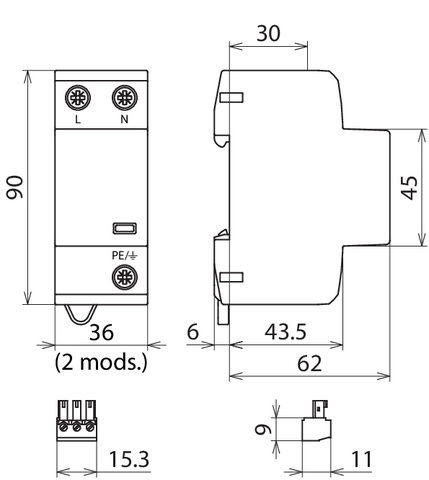

Construction size 2 modular spacing
Remote signalling evet
Nominal voltage AC 230 V
Nominal voltage DC -
Integrated backup fuse -
System configuration IT -
System configuration TT evet
Voltage protection level -
System configuration TN-C -
Max. continuous voltage AC 255 V
System configuration other -
Voltage protection level L-N 1.5 kV
Voltage protection level N-PE 1.5 kV
Overcurrent protected voltage tapping hayır
Voltage switching spark gap technology evet
Voltage protection level (DC+/DC- - PE) -
Max. conductor cross section solid (solid, stranded) 35 mm²
Max. overcurrent protection device, parallel connection (fuse) 160 A
