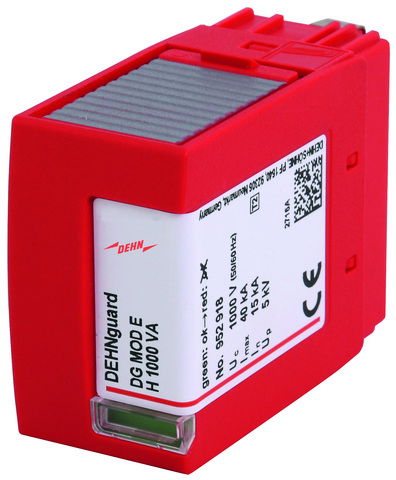

Surge arrester Type 2 protect. module for DG SE H 1000 VA FM

Name: Surge arrester Type 2 protect. module for DG SE H 1000 VA FM
Brand: DEHN
SKU: 952918

Protection module with a high discharge capacity for DEHNguard modular SE H 1000 FM, type 2 according to EN 61643-11.

Ürün kimlikleri

SKU: 952918

EAN: 4013364308336

GTIN: 4013364308336

MPN: DG MOD E H 1000 VA

Kategoriler

Switchgear & Circuit Protection Circuit Breakers MCBs RCBOs RCDs

Category type 2	evet
Max. PV-voltage	-
Mounting method	On basic element

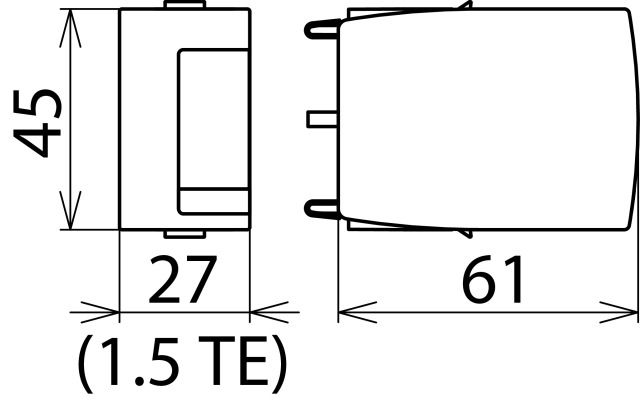

Construction size	1.5 modular units
Nominal voltage AC	-
Nominal voltage DC	-
Leakage-current free	-
Integrated backup fuse	-
System configuration DC	-
System configuration IT	-
System configuration TN	-
System configuration TT	-
Signalling at the device	Optical
Voltage protection level	5 kV
Degree of protection (IP)	-
System configuration TN-C	-
System configuration TN-S	-
Max. continuous voltage AC	1000 V
Max. continuous voltage DC	-
System configuration other	-
System configuration TN-C-S	-
Voltage protection level L-N	-
Voltage protection level N-PE	-
With remote signalling contact	-
Integrated short-circuit protection	-
Max. discharge surge current (8/20)	40 kA
Nominal discharge surge current (8/20)	15 kA
Number of conductors (without earthing)	-
Short-circuit breaking capacity (Isccr)	-
Max. conductor cross section flexible (fine-strand)	-
Max. conductor cross section solid (solid, stranded)	-
Integrated short-circuit protection selective to fuse gG	-
Max. overcurrent protection device, series connection (fuse)	-
Max. overcurrent protection device, parallel connection (fuse)	-
