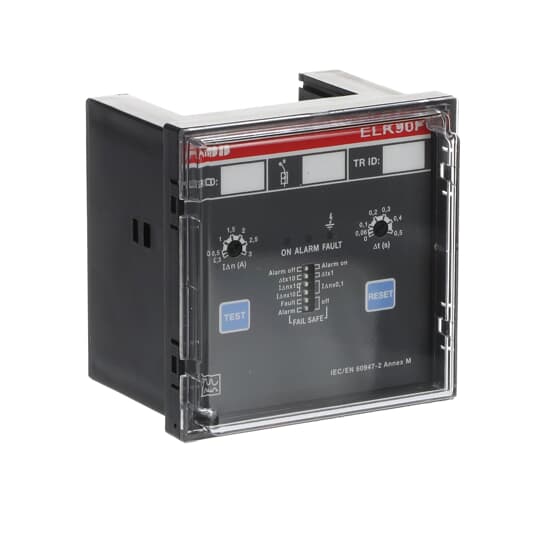

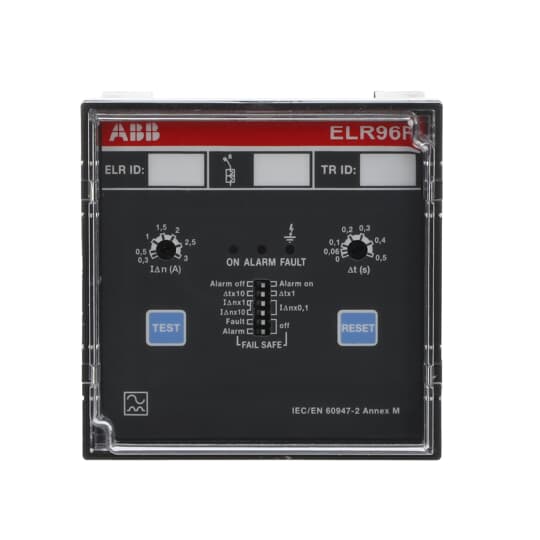

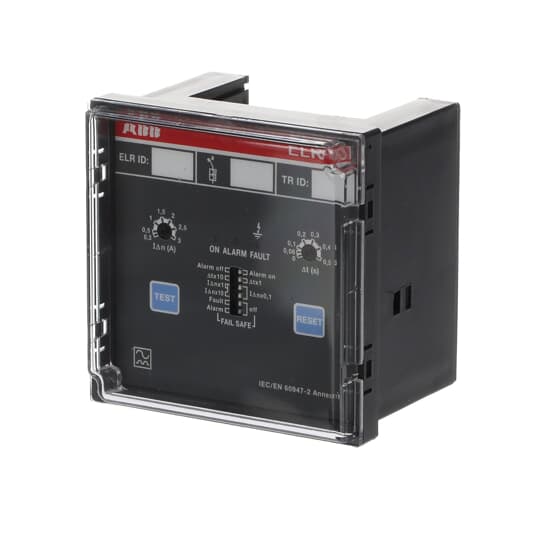

Residual Current Monitor

Name: Residual Current Monitor
Brand: ABB
SKU: 2CSG152434R1202

The ELR electronic residual current relay allows monitoring and protection of the low voltage distribution network, through the use of a toroidal transformer. Protection is achieved in combination with the MCBs and MCCBs. The ELR front panel residual current relay is compliant with protection standard 60947-2 Annex M in order to offer a cumulative operational time (residual current relay, shunt-trip, circuit breaker) guaranteed by the manufacturer.

Ürün kimlikleri

SKU: 2CSG152434R1202

EAN: 8012542734529

GTIN: 8012542734529

MPN: ELR96P

ETIM Group

Relays

Teknik özellikler

Depth	78 mm
Width	96 mm
Height	96 mm
EFI00008	3.77952
EFI00040	3.77952
EFI00049	3.07086
Function	For AC-current system
Rated voltage	110 - 400
Rated frequency
With detachable clamps	hayır
Response value amperage 1	30 - 30 mA
Response value amperage 2	30000 - 30000 mA
Voltage type for actuating	-
Error registration possible	hayır
Type of electric connection	-
Rated control supply voltage DC
Indication of difference current	evet
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Max. permitted delay-on energization time	5 s
Number of contacts as change-over contact	-
Min. adjustable delay-on energization time
Number of contacts as normally open contact	-
Number of contacts as normally closed contact	-
