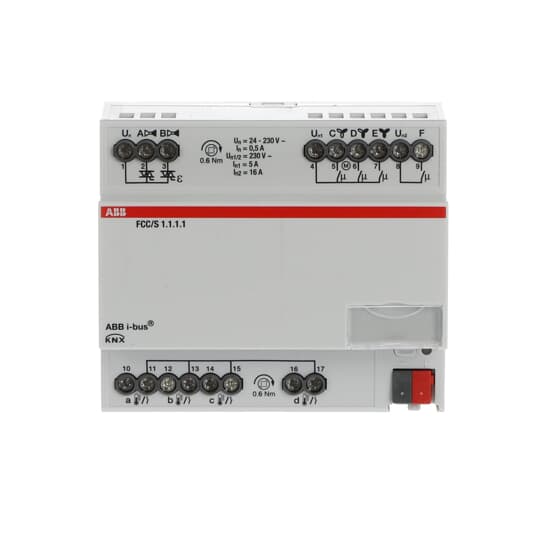

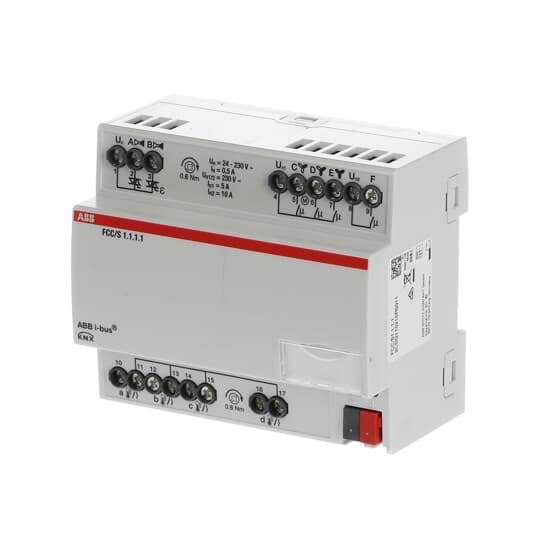

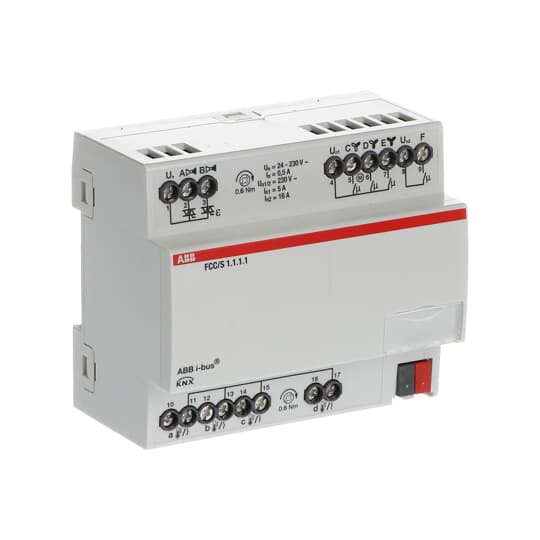

FCC/S1.1.1.1 Fan Coil Controller, 2 x PWM, 3-stage, MDRC

Link copied
SKU
EAN
GTIN
MPN
For the control of fan coil units. Via two electronic outputs, two thermoelectric or one motor-driven valve drive can be controlled for heating and cooling. For the fan control the devices features three relay outputs. A relay output switches an additional load of up to 16 A, such as auxiliary heating. Over 4 inputs the room status can be detected and monitored (Use for window contact, dew point sensor, level sensor or temperature sensor). Also it is possible to connect one analog room control unit (SAR/A or SAF/A) to the inputs of the device. The device has an integrated room temperature controller for the control of the room temperature, which can be used directly to control the outputs of the device. The device supports the ABB i-bus Tool for advanced diagnosis and improved commissioning.

Teknik özellikler

EFI12278 -
Manual switch evet
Bus system KNX evet
Bus system LON hayır
Mounting method DRA (DIN-rail adapter)
Number of outputs 5
Other bus systems None
Switching voltage
Max. output current 0.5 A
Bus module detachable hayır
Degree of protection (IP) IP20
Bus system radio frequency hayır
Radio frequency bidirectional hayır
Bus system KNX-RF (Radio Frequency) hayır
Max. switching current (resistive load) -

Belgeler

Deeplink product page

Aç

Deeplink REACH

Aç

Dimensioned drawing

6_TE_MB_XX_V1-0_2CDC072026F0017_Rev_A.pdf

Aç

Instructions for use

FCCS 1.X.X.1_MBA_XX_V1-0_2CDG941188P0002.pdf

Aç

Product data sheet

Aç

Declaration RoHS

FCCS_1111_CE-ROHS_xx_V1-0_2CDK508221D2701.pdf

Aç
