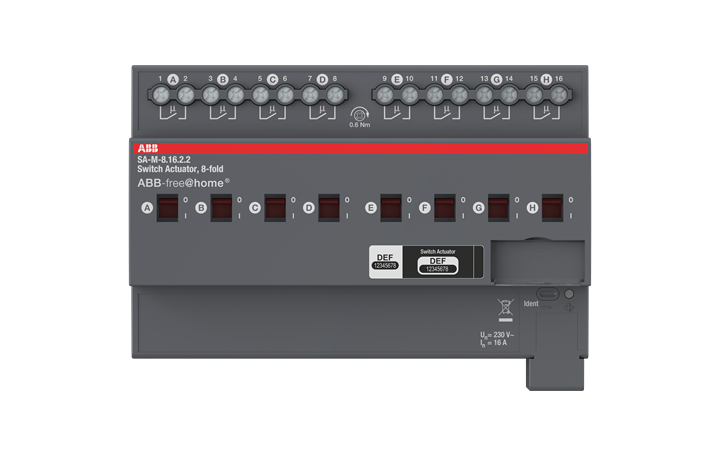

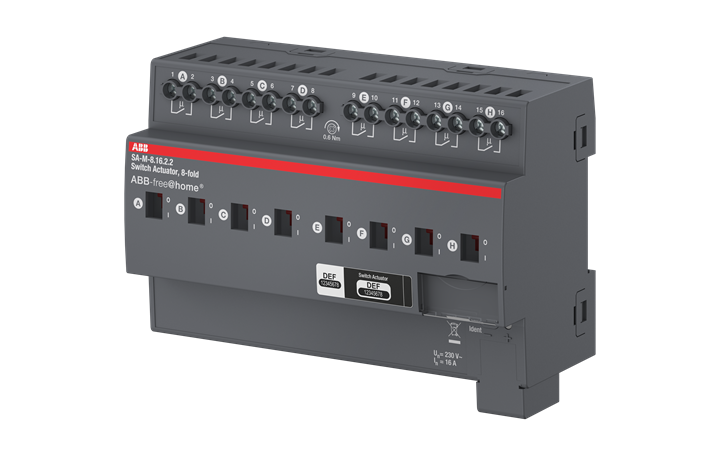

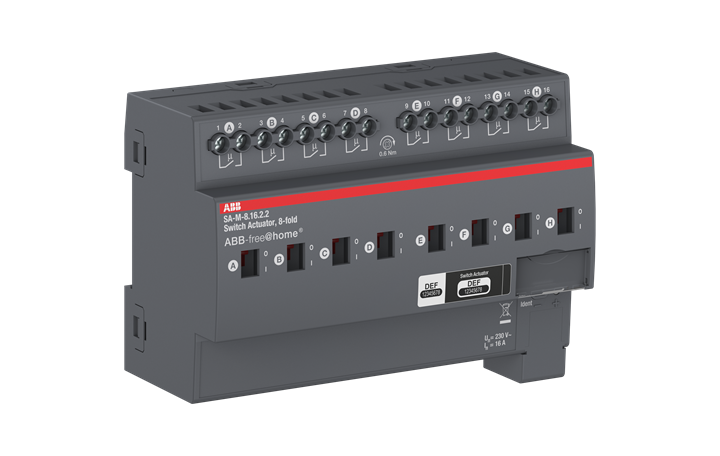

SA-M-8.16.2.2 Switch Actuator, 8-fold 16 A, MDRC

Name: SA-M-8.16.2.2 Switch Actuator, 8-fold 16 A, MDRC
Brand: ABB
SKU: 2CDG510026R0011

For switching 8 independent 127 V~/230 V~ loads. Each contact has a manual operation function independent of auxiliary voltage for additionally displaying the contact setting. The bus can be connected via enclosed terminal block.

Ürün kimlikleri

SKU: 2CDG510026R0011

EAN: 4053546111316

GTIN: 4053546111316

MPN: SA-M-8.16.2.2

Kategoriler

Switchgear & Circuit Protection Switchgear Low Voltage Switchgear Industrial Switchgear

ETIM Group

Installation bus systems

Teknik özellikler

EFI12278	2.499995
Output power	2500 W
Rated current	16 A
Bus system KNX	hayır
Bus system LON	hayır
Mounting method	DRA (DIN-rail adapter)
Other bus systems	Other
Bus system Powernet	hayır
Suitable for C-load	hayır
With LED indication	evet
With bus connection	evet
Max. switching power	2500 W
Bus module detachable	hayır
Modular expandability	hayır
Max. switching current	16 A
Rated operating voltage	230 - 230 V
Max. switching power LED	-
Number of digital inputs	-
Degree of protection (IP)	IP20
Bus system radio frequency	hayır
Different phases connectable	evet
Radio frequency bidirectional	-
Local operation/hand operation	-
Max. number of switching contacts	8
Bus system KNX-RF (Radio Frequency)	hayır
Width in number of modular spacings	8.0
Min. depth of built-in installation box	63.5 mm

Belgeler

Deeplink product page
Deeplink REACH
Dimensioned drawing
Instructions for use
Product data sheet
Declaration RoHS
Declaration DOC CE (Declaration of conformity CE)
Declaration EPD (Environmental Product Declaration)
