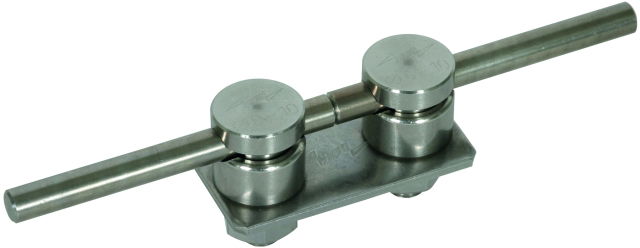

Connection plate for HVI conductor head piece with 2 KS connectors StSt

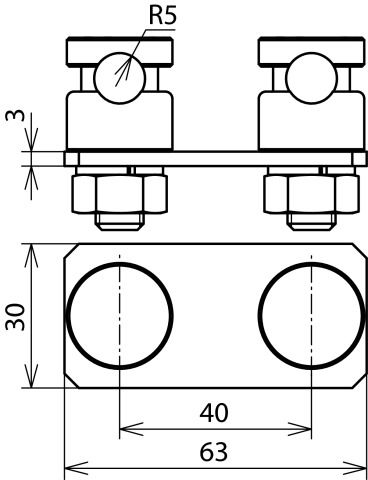

Connection plate for connecting the HVI conductor with the air-termination rod (D 10 mm), with two clamping screw connectors. Also for use as clamping screw connector according to EN 62561-1 for the lightning current carrying capable connection of round conductors. Two-piece type, distance 40 mm, with screw and nut M10.
Ürün kimlikleri
SKU: 301229
EAN: 4013364101562
GTIN: 4013364101562
MPN: AP 2X6.10 V2A
Teknik özellikler
| Material | Stainless steel 304 (V2A) |
| Type of connector | Connector |
| Surface protection | Untreated |
| Width flat conductor 1 | |
| Width flat conductor 2 | |
| Type of fastening screws | Clamp screw |
| Diameter round conductor 1 | 6.0 - 10.0 mm |
| Diameter round conductor 2 |
