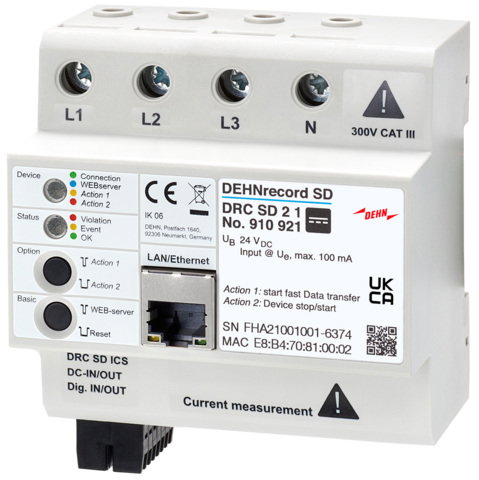

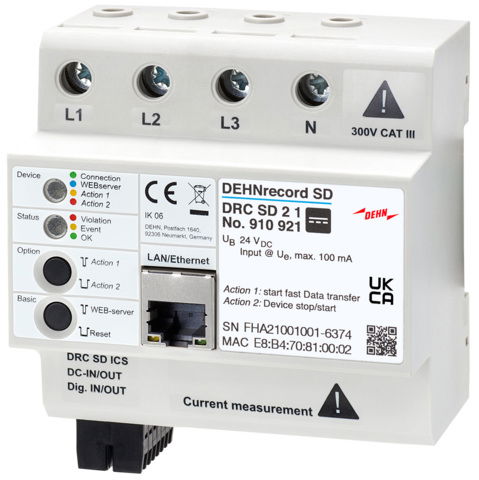

DEHNrecord SD multifunctional measuring and analysis device voltage supply 24 VDC
Integral, multifunctional measuring equipment based on edge computing in a compact housing for easy integration and retrofitting on DIN rails. Device for measuring the voltage quality according to EN 61000-4-30, class-A-certified, and limit values as per EN 50160. Measurement of temporary, power-frequency overvoltages according to EN50550. Communication link provided through Modbus TCP and MQTT 3.1 Azure.
Ürün kimlikleri
SKU: 910921
EAN: 4013364460270
GTIN: 4013364460270
MPN: DRC SD 2 1
Kategoriler
Özellikler
|
Depth
|
66 mm
|
|
Width
|
90 mm
|
|
Height
|
107 mm
|
|
Display
|
None
|
|
Remote display
|
evet
|
|
Supply voltage DC
|
18.0 - 30.0 V
|
|
Sampling frequency
|
-
|
|
Data transfer via PQDif
|
-
|
|
Supply voltage AC 50 Hz
|
|
|
Supply voltage AC 60 Hz
|
|
|
With firmware signature
|
evet
|
|
Nominal voltage (Un) L-L
|
|
|
Nominal voltage (Un) N-L
|
0.0 - 230.0 V
|
|
Number of digital inputs
|
3
|
|
With transient detection
|
-
|
|
Number of analogue inputs
|
-
|
|
Number of digital outputs
|
2
|
|
Number of analogue outputs
|
-
|
|
Display resolution (vertical)
|
-
|
|
Measuring range for frequency
|
42.5 - 57.5 Hz
|
|
Voltage type (supply voltage)
|
DC
|
|
Number of Ethernet connections
|
1
|
|
Supporting protocol for Modbus
|
evet
|
|
With audit logging (audit log)
|
-
|
|
Display resolution (horizontal)
|
-
|
|
Supporting protocol for PROFIBUS
|
-
|
|
Flicker according to IEC 61000-4-15
|
-
|
|
Supporting protocol for PROFINET IO
|
-
|
|
Number of current measurement inputs
|
4
|
|
Number of voltage measurement inputs
|
4
|
|
Data evaluation according to EN 50160
|
evet
|
|
Degree of protection (IP), front side
|
IP20
|
|
Supporting protocol for OPC UA PubSub
|
-
|
|
With Role Based Access Control (RBAC)
|
-
|
|
Fault record transmission via COMTRADE
|
-
|
|
Web server with HTTPS transfer protocol
|
evet
|
|
Supporting protocol for other bus systems
|
-
|
|
Accuracy class according to IEC 61000-4-30
|
A
|
|
Sampling frequency for transient detection
|
-
|
|
Supporting protocol for IEC 61850 Ethernet
|
-
|
|
With logging of security events (security event log)
|
-
|
|
Accuracy class active energy according to IEC 62053-22
|
Other
|
|
Accuracy class reactive energy according to IEC 62053-23
|
Other
|
|
Measurement of harmonics in frequency range 2 kHz - 9 kHz
|
-
|
|
Measurement of harmonics in frequency range 9 kHz - 150 kHz
|
-
|
