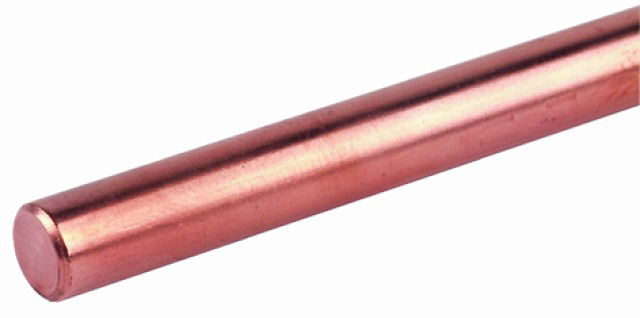

Round wire 8mm Cu coil length: 20m +/-5% soft

Name: Round wire 8mm Cu coil length: 20m +/-5% soft
Brand: DEHN
SKU: 830108

Copper wire according to EN 62561-2, soft, for use in lightning protection and earth-termination systems or equipotential bonding.

Ürün kimlikleri

SKU: 830108

EAN: 4013364080430

GTIN: 4013364080430

MPN: RD 8 CU F20 WEI R20M

Teknik özellikler

Colour	-
Weight	45 kg/100 m
Max. tensile load	-
Number of strands	1
Conductor category	Class 1 = solid
Conductor material	Copper
Diameter conductor	8 mm
Sheathing material	-
Surface protection	Untreated
Material insulation	-
Conductor cross section	50 mm²
Material quality conductor	-
Suitable for EX-applications	-
Outer diameter incl. sheat/cover	-
Characteristic conductor material	Soft
High-voltage-proof insulated model	-
Max. equivalent separation distance s (in air)	-
Max. equivalent separation distance s (solid building materials)	-
