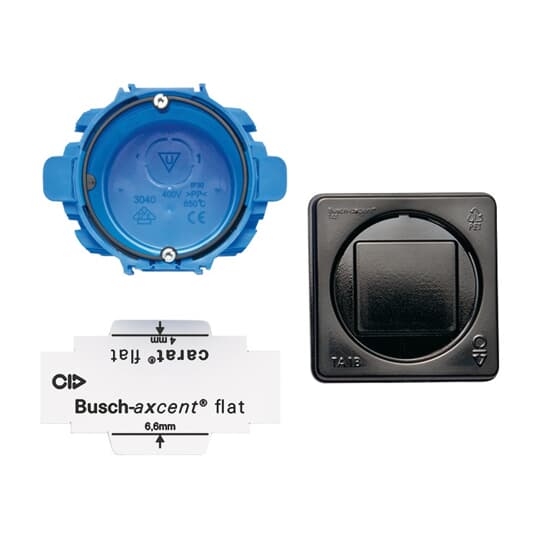

Mounting box set 1 gang with Plastering moulding tool, positioning device, RFID-chip blue - carat
For flat flush-mounted installation, stonework Suitable for cover frame carat®. Set consists of a flush-mounted box for brickwork 3040. With plastering moulding tool and positioning device. With integrated RFID-chip for easy detection. With vertically adjustable rotary ring. With Torx/slotted screws. With variable basement depth. Mounting boxes are combinable directly. With flex knockouts for cables or pipes. The boxes need to be plastered. Hole size : 82 mm
Ürün kimlikleri
SKU: 2CKA001740A0066
EAN: 8712507114914
GTIN: 8712507114914
MPN: 3048/11
Kategoriler
Özellikler
|
Depth
|
82 - 82 mm
|
|
Model
|
Single
|
|
Shape
|
Round
|
|
Width
|
72 mm
|
|
Colour
|
Blue
|
|
Length
|
82 mm
|
|
Nozzle
|
-
|
|
Diameter
|
83 mm
|
|
EFI00008
|
2.83464
|
|
EFI00551
|
3.26771
|
|
EFI01131
|
2.04724
|
|
EFI01438
|
3.22834
|
|
EFI04969
|
-
|
|
EFI05457
|
3.22834|3.22834
|
|
EFI05466
|
-|-
|
|
EFI15116
|
-|-
|
|
EFUK0019
|
-
|
|
Material
|
Plastic
|
|
Sealable
|
hayır
|
|
Air tight
|
hayır
|
|
Couplable
|
evet
|
|
Cover model
|
Construction protective cover
|
|
Inner depth
|
52 mm
|
|
With screws
|
evet
|
|
Halogen free
|
evet
|
|
Pipe locking
|
hayır
|
|
Equipped with
|
Other
|
|
With nail lugs
|
hayır
|
|
With screening
|
hayır
|
|
Mounting method
|
Flush-mounted
|
|
Cover attachment
|
Snapped on
|
|
Number of inlets
|
9
|
|
Circuit integrity
|
-
|
|
Construction type
|
-
|
|
For tube diameter
|
20/25 mm
|
|
Transparent cover
|
hayır
|
|
Surface protection
|
Untreated
|
|
Inlet from the rear
|
evet
|
|
Special application
|
-
|
|
Clamp position fixed
|
hayır
|
|
Pipe locking optional
|
hayır
|
|
Luminaire hook mounting
|
hayır
|
|
Degree of protection (IP)
|
IP20
|
|
Number of included spouts
|
-
|
|
Degree of protection (NEMA)
|
-
|
|
Suitable for cable diameter
|
|
|
Max. conductor cross section
|
-
|
|
Mounting switching equipment
|
Screwing
|
|
Number of poles of the clamp
|
-
|
|
Provided with revolving ring
|
hayır
|
|
Housing feed-through by nozzle
|
evet
|
|
For number of electric fittings
|
1
|
|
Suitable for wall/board thickness
|
|
|
Housing feed-through by seal membrane
|
hayır
|
|
Housing feed-through by step membrane
|
hayır
|
|
Number of adjustable device fixing lugs
|
-
|
|
Housing feed-through by break-out opening
|
evet
|
|
Number of non-adjustable device fixing lugs
|
-
|
